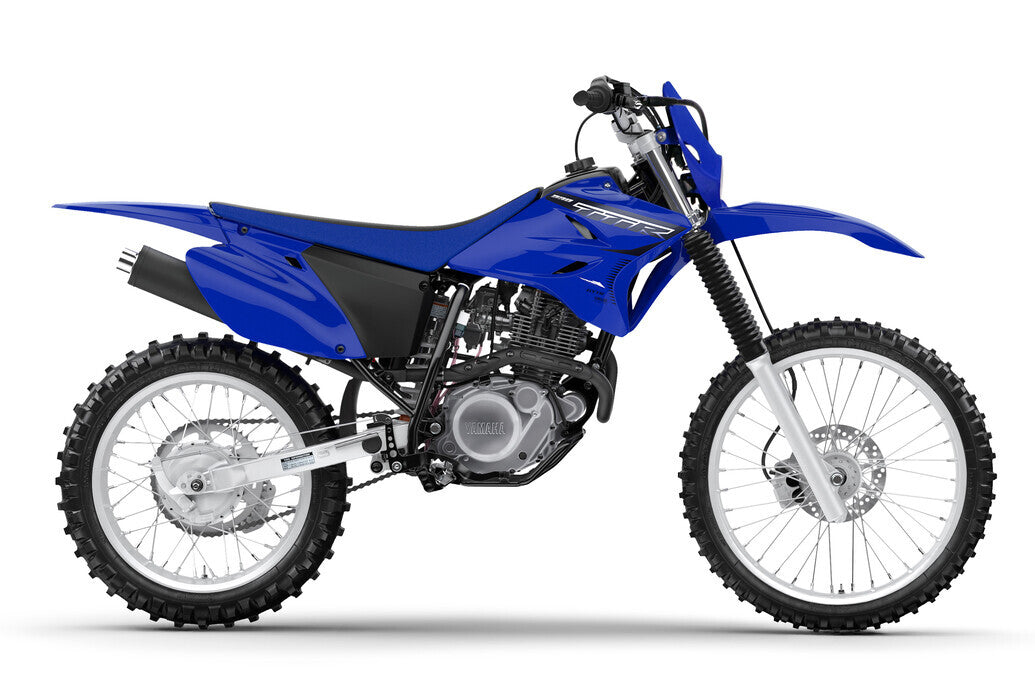

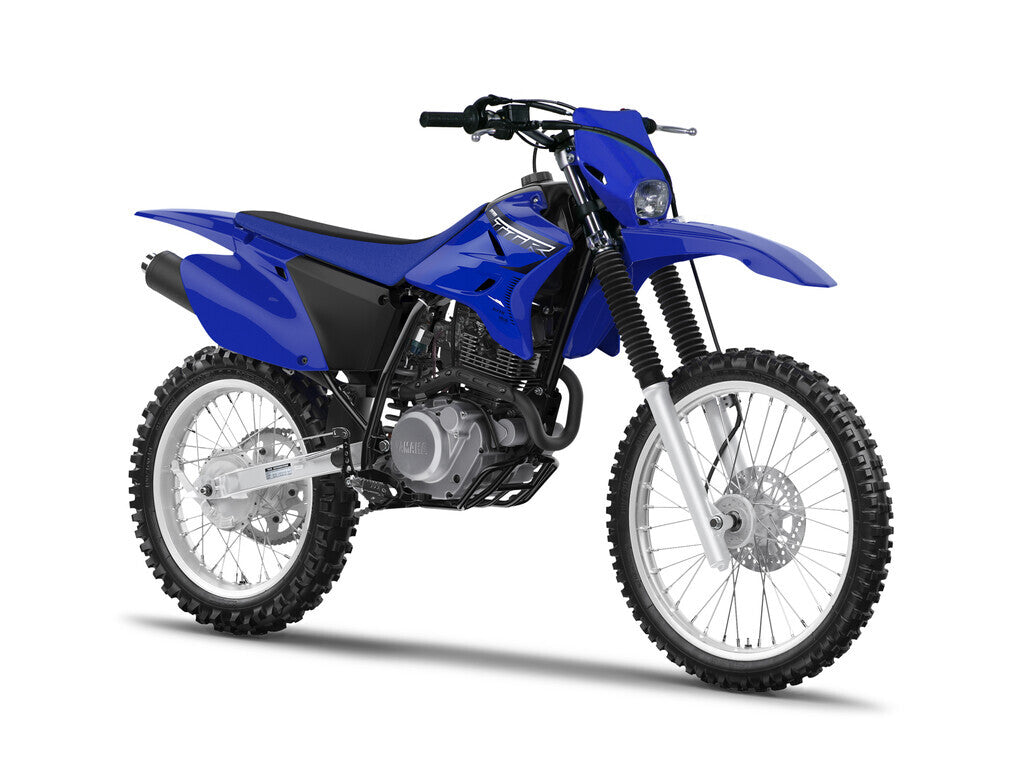

2023 Yamaha TTR230
$6,899.00 AUD
Unit price /
Unavailable
Ready to Ride
2023 Yamaha TTR230 - Team Yamaha Blue is backordered and will ship as soon as it is back in stock.
Engine
Engine

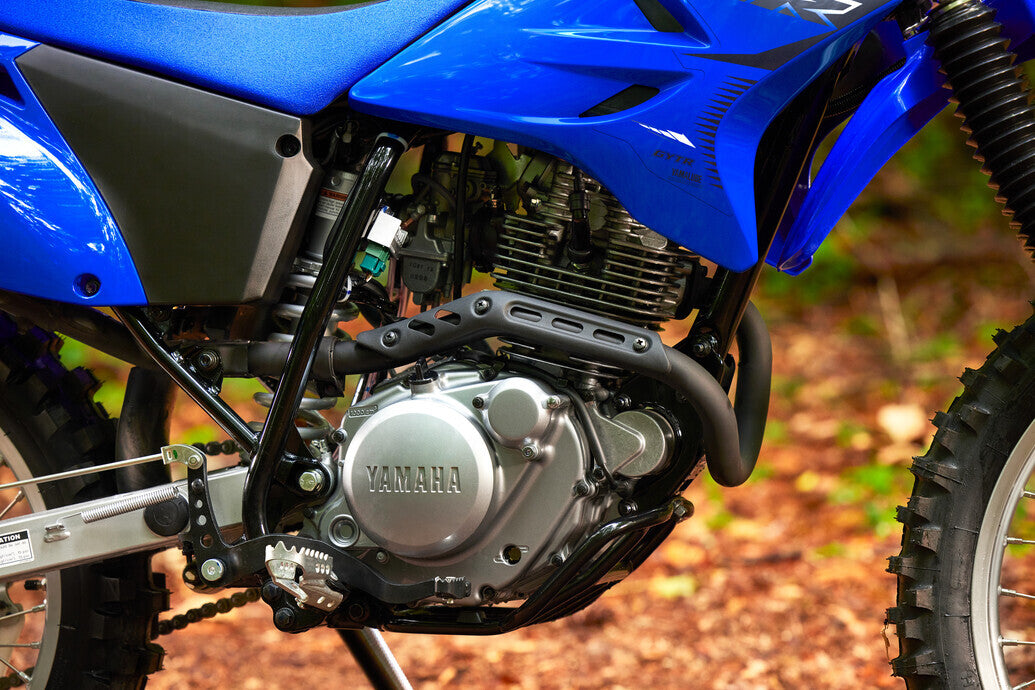

- Engine Type: Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
- Displacement (cc): 223.0
- Bore x Stroke (mm): 70.0 x 58.0
- Compression Ratio: 9.5 : 1
- Lubrication System: Wet sump
- Fuel Management: Y26P x 1
- Ignition: CDI
- Starter System: Electric
- Fuel Tank Capacity (L): 8.0
- Final Transmission: Chain
- Transmission: Constant mesh 6-speed
Chasis
Chasis
- Frame Type: Diamond
- Suspension Front: Telescopic forks, 240mm travel

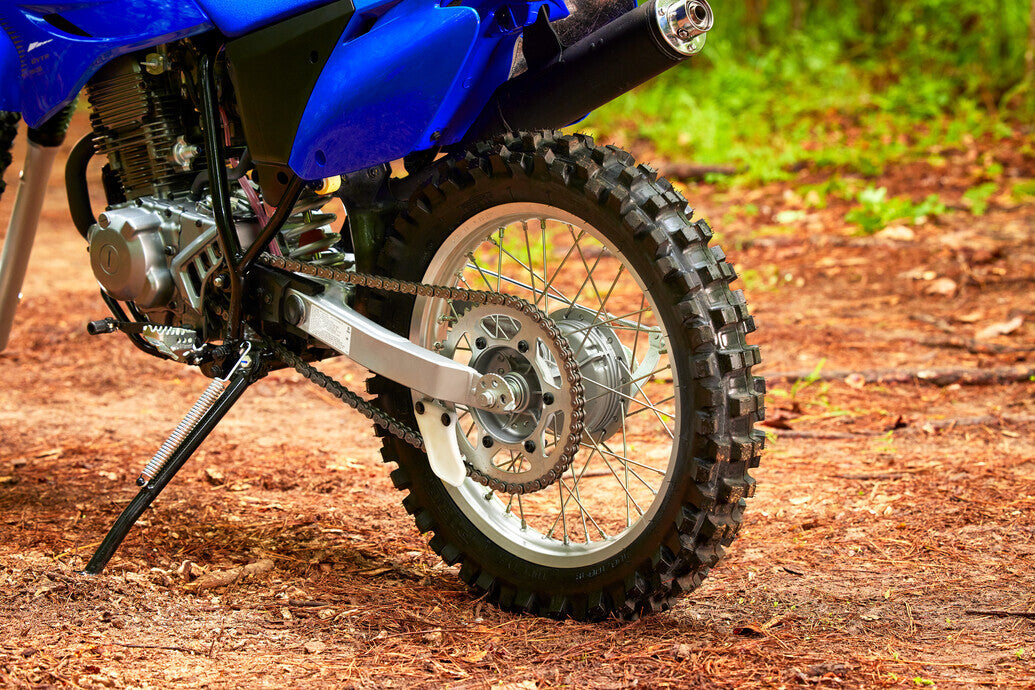

- Suspension Rear: Swingarm (link suspension), 220mm travel

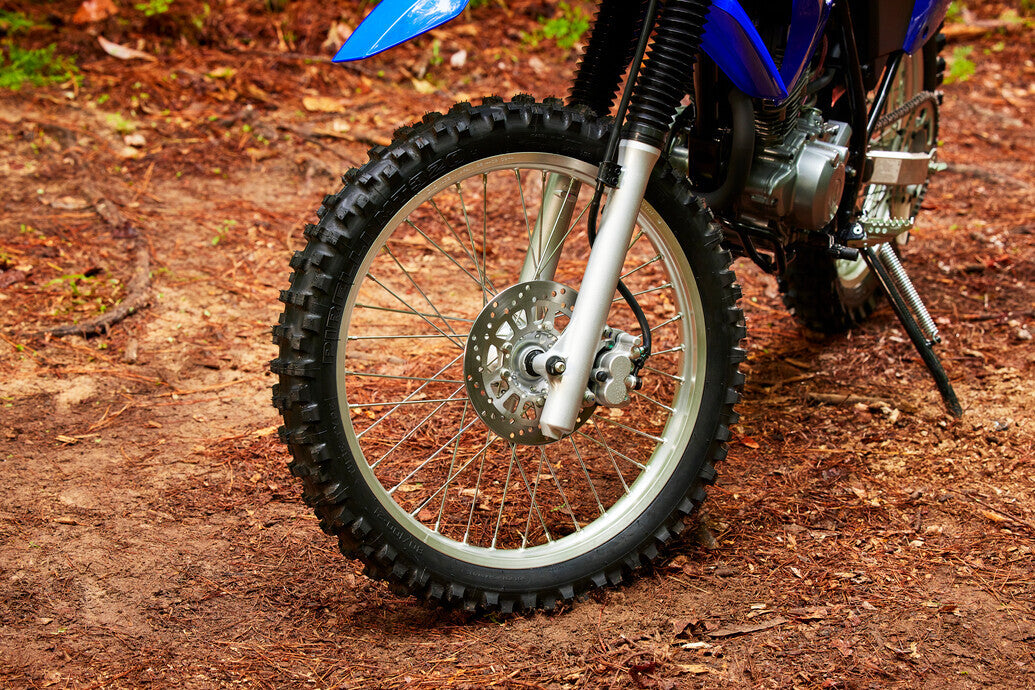

- Brakes Front: Hydraulic single disc, 220mm
- Brakes Rear: Drum
- Tyres Front: 80/100-21 51R Tube type
- Tyres Rear: 100/100-18 59R Tube type
Dimensions
Dimensions
- Length (mm): 2065
- Width (mm): 800
- Height (mm): 1180
- Seat Height (mm): 870
- Wheelbase (mm): 1385
- Ground Clearance (mm): 295
- Wet Weight (kg): 114
2023 Yamaha TTR230
$6,899.00 AUD
Unit price /
Unavailable
Versatility at its finest!

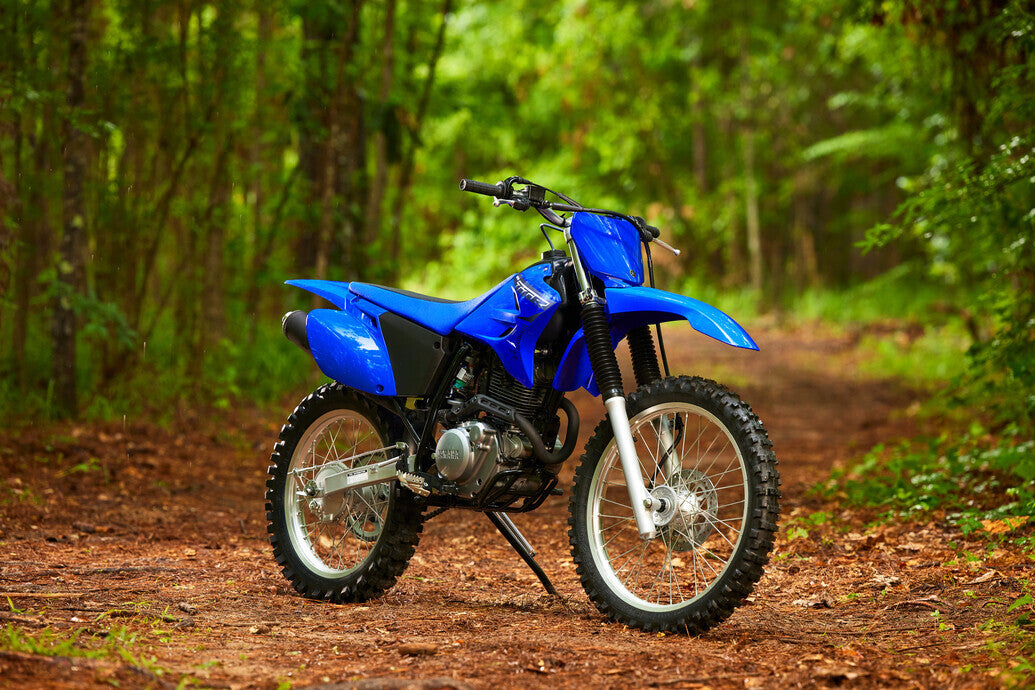

The tried and tested TTR230 is arguably the most versatile model in the line-up.
Meet Mr – and Mrs – Versatile. YZ-inspired handling and looks, and a clockwork reliable 223cc air-cooled, SOHC four-stroke make the TT-R230 a great choice for beginner and intermediate riders.

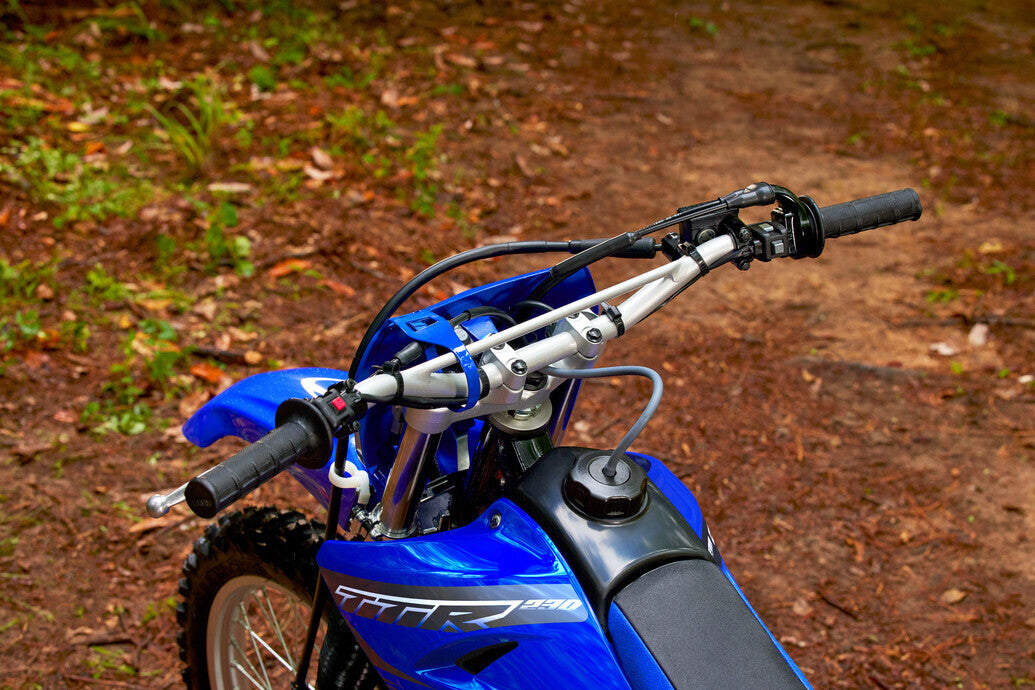

A competition-style flat seat / tank junction makes for great rider mobility while the push button start is a no brainer. A low seat height on top of a long-travel suspension and generous ground clearance make this a serious trail bike that's accessible to wide range of riders.
A competition-style flat seat / tank junction makes for great rider mobility while the push button start is a no brainer. A low seat height on top of a long-travel suspension and generous ground clearance make this a serious trail bike that's accessible to wide range of riders.
MODEL FEATURES
See unique features by clicking the buttons on the image below
