Segway Powersports AT5L Quadpro ATV
Ready to Ride

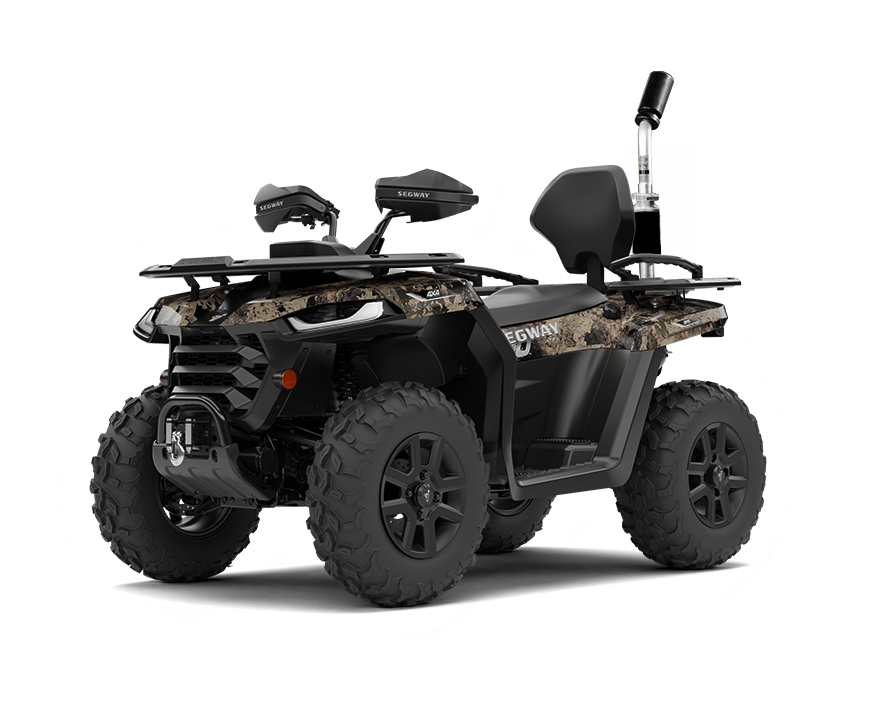

Segway Powersports AT5L Quadpro ATV - Camo is backordered and will ship as soon as it is back in stock.
Powertrain & Drivetrain
Powertrain & Drivetrain
- Powertrain: Petrol
- Engine Displacement: 499cc, 4-Stroke Single-Cylinder, DOHC Engine
- Max Torque: 44 Nm
- Horsepower: 39 hp
- 0-60km/h: 4.6 Seconds
- Fuel Supply: Bosch Electronic Fuel Injection
- Drive System Type: 2WD/4WD/4WD lock
- Differential Lock: Front & Rear
- Transmission: CVTech
- Smart Electronic Power Steering (EPS):Three Models: Standard / Comfort / Sport on EPS models only
- Cooling System: Dual Oil Column Piston Cooling System + Liquid & Oil Heat Exchanger Cooling System
Suspension System
Suspension System
- Frame: High-strength chromium-molybdenum steel frame
- Rear Suspension & Travel: Dual A-Arm; Rear Travel: 7.9″
- Front Suspension & Travel: Dual A-Arm; Front Travel: 7.1″
- Shock: Oil Shock with Adjustable Spring Pre-load
- Tyres: Front Tyres 6 Ply 25 x 8-12 Rear Tyres 25 x 10-12
- Wheels: Alloy (12 inch)
- Brakes: 4-Wheel Hydraulic Disc Brake
Dimensions & Capacities
Dimensions & Capacities
- Towing Capacity: 612 kg (1,350 lb) *Trailer with Braking System
- Payload Capacity: 270 kg (595 lb)
- Front/Rear Rack Capacity: Front/Rear: 40 kg/60 kg (88 lb/132 lb)
- Fuel Capacity: 19 litre (5.0 gal)
- Curb Weight: 370 kg
- Wheelbase: 145 cm (57.2″)
- Ground Clearance: 25 cm (9.8″)
- Vehicle Size (Length/Width/Height: 230 x 118 x 135 cm (90.5x 46.5 x 53.0”)
Segway Powersports AT5L Quadpro ATV
2 Seater with all the features

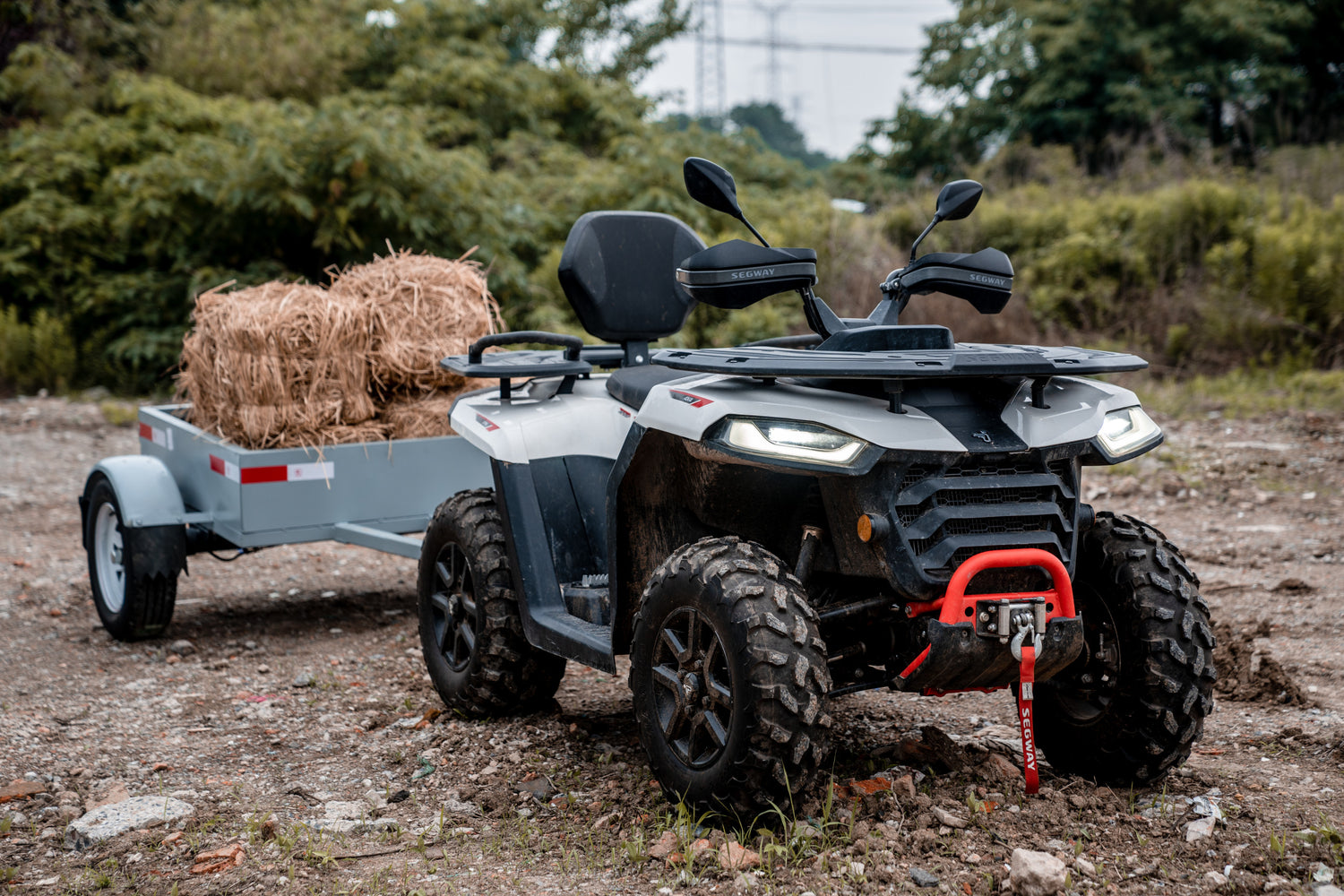

The AT5L Quadpro gives you the ability to transport 2 people whilst maintaining the benefits in agility that an ATV has over a UTV with all the creature comforts you would ever want
Introducing the AT5 Quad Bike, an exceptional ATV designed for Australian farmers. This compliant and advanced four-wheeler meets all Australian safety standards and includes an Operator Protection Device. Equipped with the groundbreaking Smart Commanding System (SCS), the AT5 Quad Bike allows you to access real-time data, and engage in remote monitoring and control. Tackle challenging terrains, effortlessly transport heavy loads, and elevate your farming operations with this pinnacle of design, safety, and cutting-edge technology. Choose the AT5 Quad Bike and experience excellence in farming machinery.
An untamed mechanical beast. LED eyes, heroic body, imposing lines. Simple overall visual style, contrast colour design with the frame, create a unique controlled tension aesthetics.
AT5 features a Spiral Angle Front/Rear Constant Drive Shaft, while the front axle differential enables the smooth switching between 2-wheel and 4-wheel drive. User Selectable rear differential lock to maximize available traction to four wheels.
Standard on all Segway Powersports models in Australia, the Telematics BOX (T-BOX) is a connected-vehicle-standard terminal that delivers multiple online applications including vehicle remote monitoring, remote control, safety monitoring and warning via 4G, Bluetooth and CAN communication. You can access real-time data of your vehicle through Smart Commanding System (SCS). This intelligent interaction with your Segway Powersport vehicle provides industry-leading safety and leads you to epic places to ride!
Note: Only the images connected to the color selector are of the exact model listed, other images are generic and for illustrative purposes only and may be for a different spec model.
From 11th October 2020, all new quad bikes are required to meet the specified requirements of the US standard for quad bikes, ANSI/SVIA 1-2017, or the European standard for quad bikes, EN 15997:2011. From 11th October 2021, general use quad bikes are required to meet the minimum stability requirements and must also be fitted with an operator protection device (OPD) or have one integrated into its design. From 11th October 2021 all Segway Snarler Quads sold in Australia will have a compliant QuadBar Operator Protection Device (OPD) fitted by the dealer at point of sale included in RRP.
A requirement of the Consumer Goods Quad Bike Safety Standard is that all quad bikes are tested for static stability using a tilt table test and display the angle at which it tips on to two wheels on a hang tag at the point of sale. Crashlab (NSW) conducted the tilt angle test for all Segway SNARLER quad bikes for both lateral stability (sideways) and longitudinal stability (forward and back) tilt angles. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The test is conducted with the vehicle in a stationary position and weighted as if a rider was on board. All testing was conducted with a Quadbar OPD installed.
