Segway Powersports AT5S Quadpro ATV
Ready to Ride

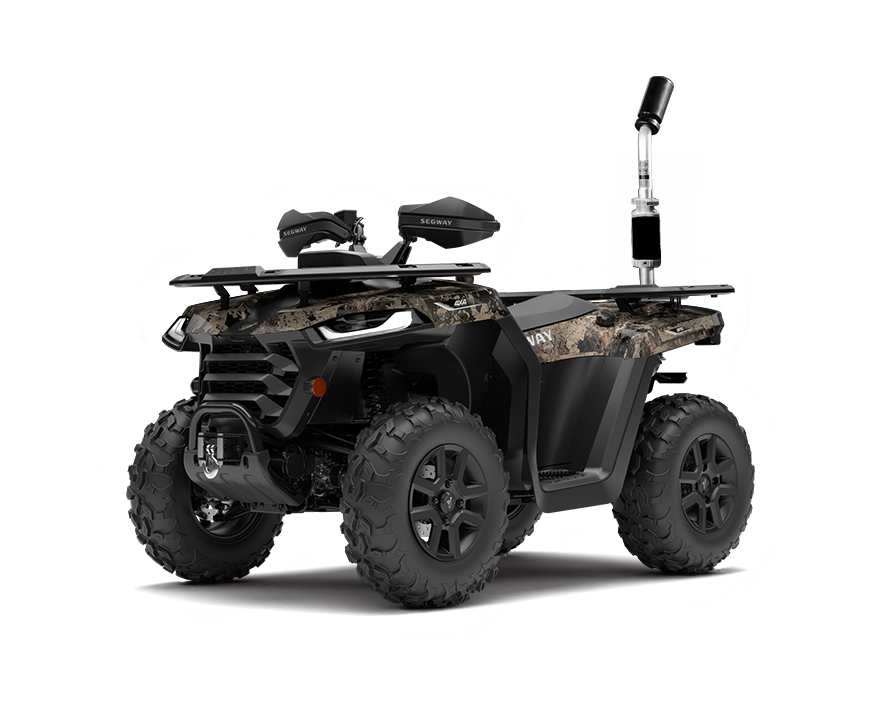

Segway Powersports AT5S Quadpro ATV - Camo is backordered and will ship as soon as it is back in stock.
Powertrain & Drivetrain
Powertrain & Drivetrain
- Powertrain: Petrol
- Engine Displacement: 499cc, 4-Stroke Single-Cylinder, DOHC Engine
- Max Torque: 44 Nm
- Horsepower: 39 hp
- 0-60km/h: 4.6 Seconds
- Fuel Supply: Bosch Electronic Fuel Injection
- Drive System Type: 2WD/4WD/4WD lock
- Differential Lock: Front with Fixed Rear Axle
- Transmission: CVTech
- Smart Electronic Power Steering (EPS): Three Models: Standard / Comfort / Sport on EPS models only
- Cooling System: Dual Oil Column Piston Cooling System + Liquid & Oil Heat Exchanger Cooling System
Suspension System
Suspension System
- Frame: High-strength chromium-molybdenum steel frame
- Rear Suspension & Travel: Dual A-Arm; Rear Travel: 7.9″
- Front Suspension & Travel: Dual A-Arm; Front Travel: 7.1″
- Shock: Oil Shock with Adjustable Spring Pre-load
- Tyres: Front Tyres 6 Ply 24 x 8-12 Rear Tyres 24 x 10-12
- Wheels: Alloy (12 inch)
- Brakes: 4-Wheel Hydraulic Disc Brake
Dimensions & Capacities
Dimensions & Capacities
- Towing Capacity: 612 kg (1,350 lb) *Trailer with Braking System
- Payload Capacity: 185 kg (407 lb)
- Front/Rear Rack Capacity: Front/Rear: 40 kg/60 kg (88 lb/132 lb)
- Fuel Capacity: 19 litre (5.0 gal)
- Curb Weight: 355 kg
- Wheelbase: 130 cm (51.2″)
- Ground Clearance: 25 cm (9.8″)
- Vehicle Size (Length/Width/Height: 216 x 118 x 123 cm (85 x 46.5 x 48.4″)
Segway Powersports AT5S Quadpro ATV
The ATV with all the features
If your someone who wants it all, then the AT5S Quadpro is for you
The AT5 S Quad Pro is the pinnacle of the AT5 S range, designed to exceed expectations and redefine excellence in ATV technology and reliability. Building upon the solid foundation of the AT5 S EPS model, the AT5 Quad Pro takes your farming experience to an entirely new level of dependability and convenience.
Included in this premium package is everything you love about the EPS model, offering you the versatility of standard, comfort, and sports modes through the Smart EPS System. But that’s just the beginning. The AT5 Quad Pro goes the extra mile by featuring the innovative T-Box and Smart Moving App.
Note: Only the images connected to the color selector are of the exact model listed, other images are generic and for illustrative purposes only and may be for a different spec models.
From 11th October 2020, all new quad bikes are required to meet the specified requirements of the US standard for quad bikes, ANSI/SVIA 1-2017, or the European standard for quad bikes, EN 15997:2011. From 11th October 2021, general use quad bikes are required to meet the minimum stability requirements and must also be fitted with an operator protection device (OPD) or have one integrated into its design. From 11th October 2021 all Segway Snarler Quads sold in Australia will have a compliant QuadBar Operator Protection Device (OPD) fitted by the dealer at point of sale included in RRP.
A requirement of the Consumer Goods Quad Bike Safety Standard is that all quad bikes are tested for static stability using a tilt table test and display the angle at which it tips on to two wheels on a hang tag at the point of sale. Crashlab (NSW) conducted the tilt angle test for all Segway SNARLER quad bikes for both lateral stability (sideways) and longitudinal stability (forward and back) tilt angles. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The test is conducted with the vehicle in a stationary position and weighted as if a rider was on board. All testing was conducted with a Quadbar OPD installed.
For more information on Australian Government Regulations & Safety Standards click below
