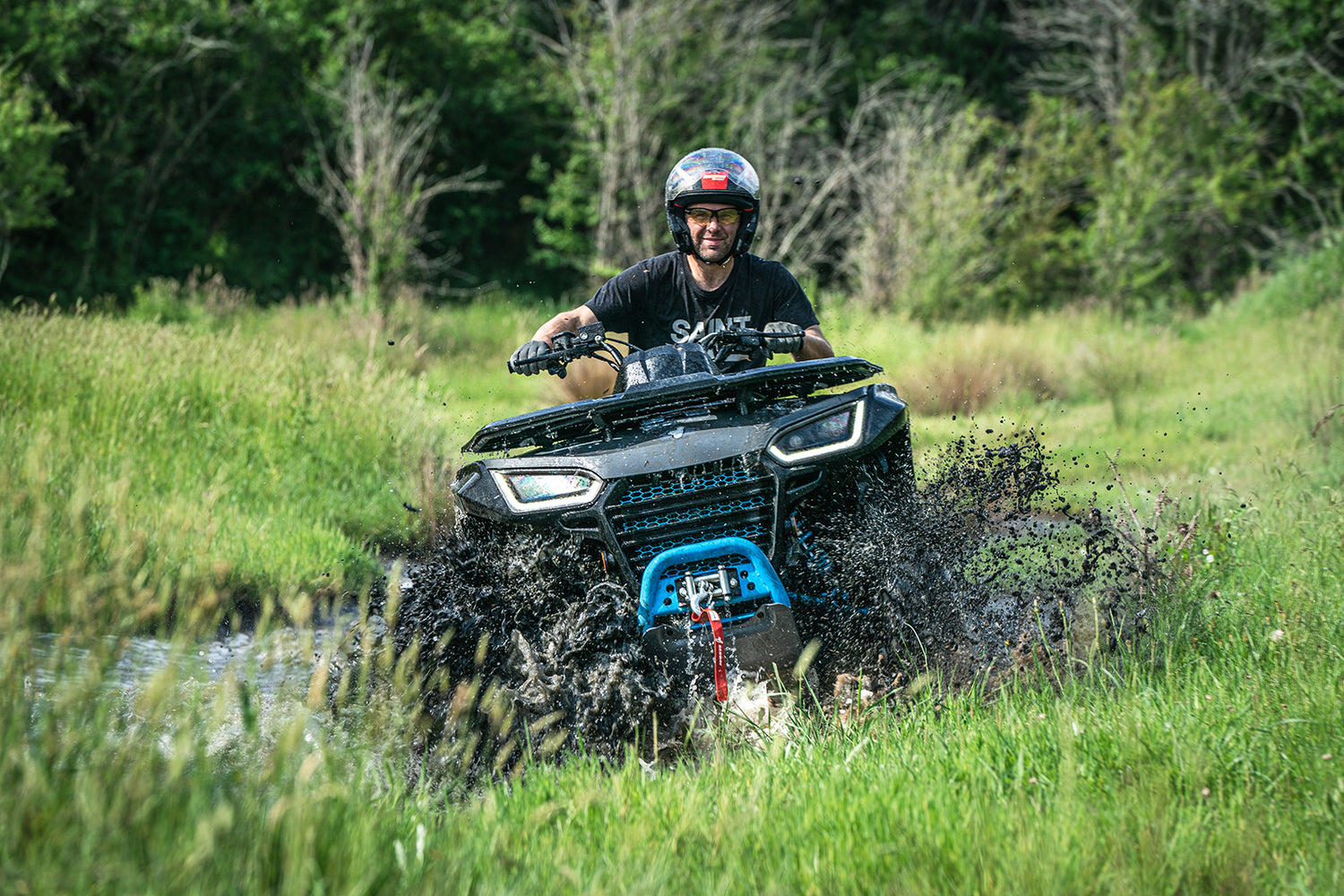

Segway Powersports AT6L EPS Snarler ATV
Ready to Ride
Segway Powersports AT6L EPS Snarler ATV - Grey/ Blue is backordered and will ship as soon as it is back in stock.
Powertrain & Drivetrain
Powertrain & Drivetrain
- Powertrain: Petrol
- Engine Displacement: 570cc, 4-Stroke Single-Cylinder, DOHC Engine
- Max Torque: 48 Nm
- Horsepower: 44 hp
- Fuel Supply: Electronic Fuel Injection
- Differential Lock: Front
- Transmission: CVTech
- Smart Electronic Power Steering (EPS): Three Models: Standard / Comfort / Sport on EPS & Full Spec models only
- Cooling System: Dual Oil Column Piston Cooling System + Liquid & Oil Heat Exchanger Cooling System
Suspension System
Suspension System
- Frame: High-strength chromium-molybdenum steel frame
- Rear Suspension & Travel: Dual A-Arm; Rear Travel: 8.3″ (21cm)
- Front Suspension & Travel: Dual A-Arm; Front Travel: 7″ (18cm)
- Shock: Oil Shock
- Tyres: Front Tyres 25 x 8-12 Rear Tyres 25 x 10-12
- Wheels: Standard Steel (12 inch)
- Brakes: 4-Wheel Hydraulic Disc Brake
Dimensions & Capacities
Dimensions & Capacities
- Towing Capacity: 350kg
- Payload Capacity: 270kg
- Front/Rear Rack Capacity: Front: 40kg / Rear: 80kg
- Fuel Capacity: 23L
- Curb Weight: 384kg
- Wheelbase: 145 cm
- Ground Clearance: 27 cm
- Seat Height: 93cm
- Vehicle Size (Length/Width/Height: 234cm x 128cm x 143 cm

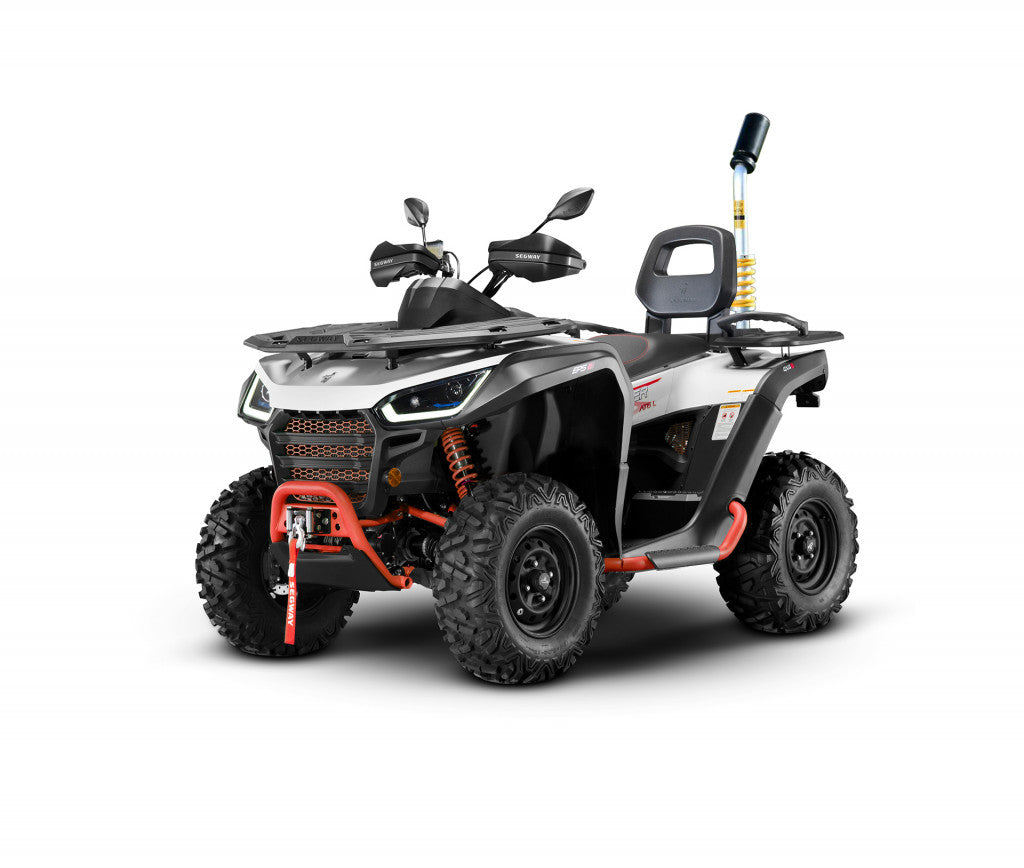

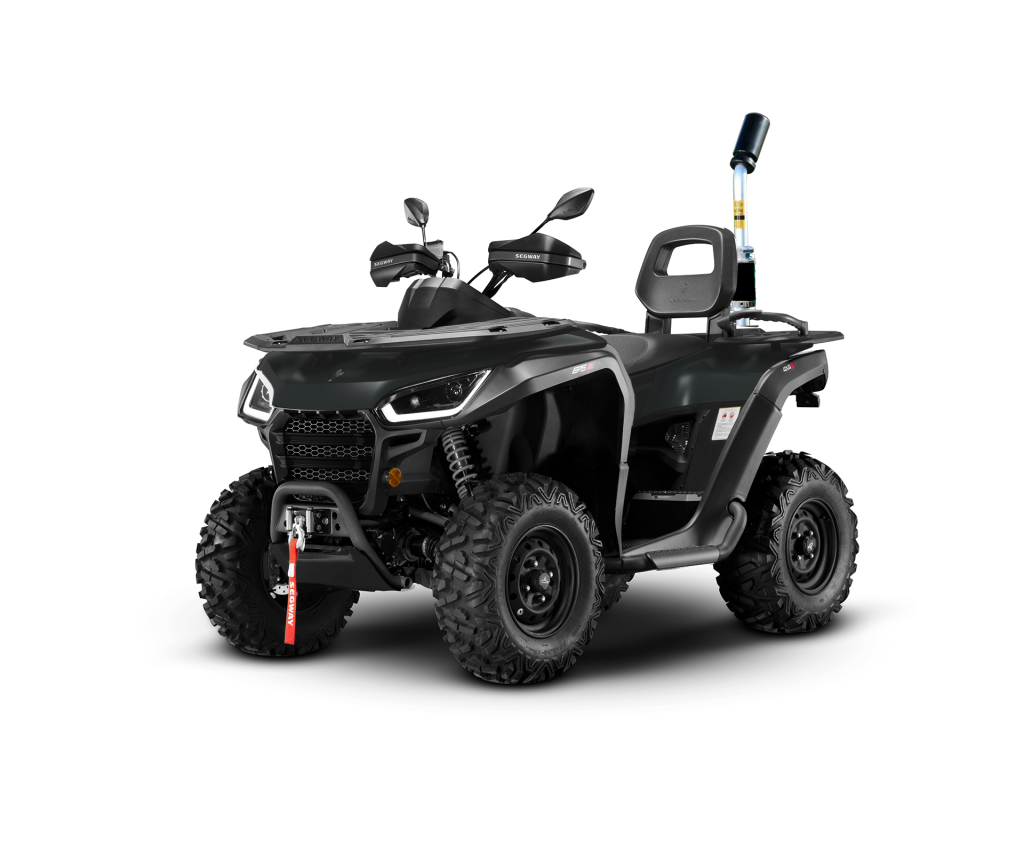

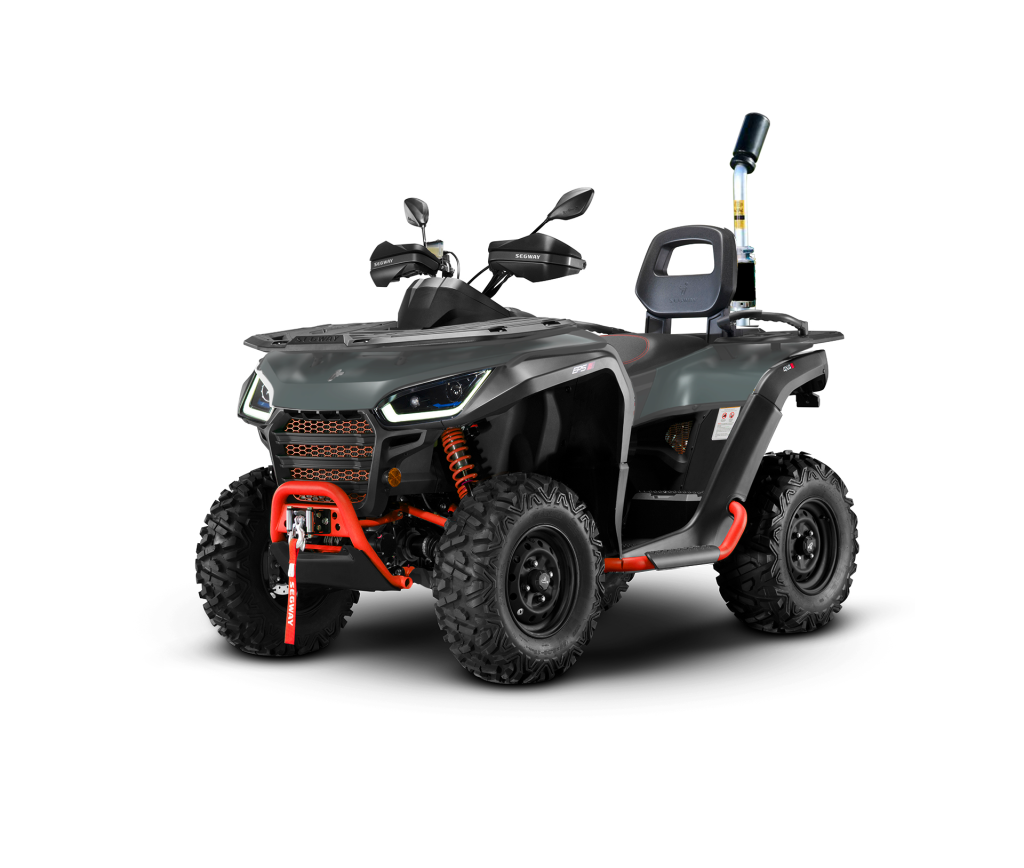

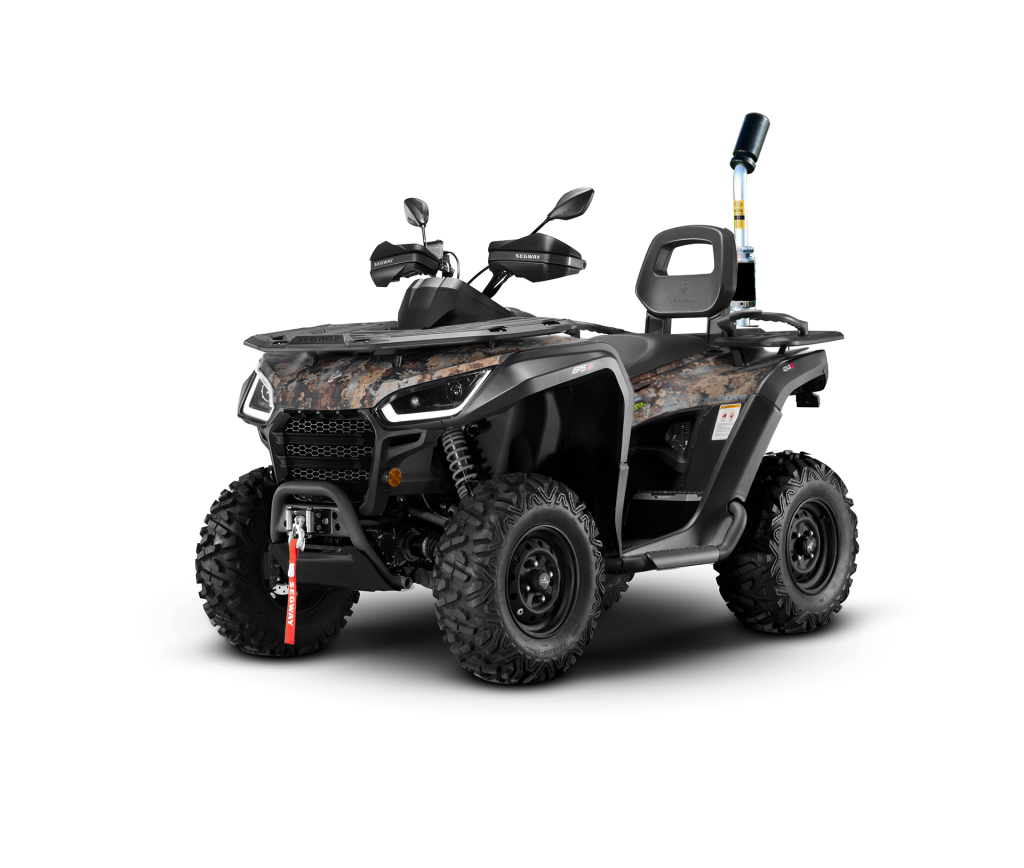

Segway Powersports AT6L EPS Snarler ATV
2 Seats with EPS
The AT6L EPS packages smooth and easy to use controls with comfortable ergonomics
For a work-ready farm quad bike that you can count on, look no further than the Snarler AT6L. The long wheel-base version of our immensely popular Snarler 4-wheeler, the AT6 L offers unmatched power and strength, allowing you to shift stock, haul heavy loads and tackle whatever the day throws at you.
Exceeding the minimum quad bike safety standards set by the Australian Government, the AT6 L can withstand tilt angles of up to 33° and comes fitted with an Operator Protection Device for added peace of mind when it’s time to venture into rough terrain.
Packed with modern technology, the AT6 L’s T-BOX and smartphone app allows you to enhance your operations and embrace the power of the digital world with access to real-time data and functions including remote monitoring, remote control, and safety monitoring through the onboard Smart Commanding System (SCS).
An untamed mechanical beast. Heroic body, imposing lines. Simple overall visual style, contrast color design with the frame, create unique controlled tension aesthetics.
Standard on all Segway Powersports models in Australia, the Telematics BOX (T-BOX) is a connected-vehicle-standard terminal that delivers multiple online applications including vehicle remote monitoring, remote control, safety monitoring and warning via 4G, Bluetooth and CAN communication. You can access real-time data of your vehicle through the Smart Commanding System (SCS). This intelligent interaction with your Segway Powersport vehicle provides industry leading safety and leads you to epic places to ride!
570CC liquid cooled, single cylinder, 4-stroke, DOHC engine delivers max 44HP and 48N·m of torque. The 570CC engine adopts the optimal design of insulator spark plug and optimized CAM. With the addition of electronic fuel injection system, the powertrain has great adaptability in high/low temperature and high altitude environment.
Note: Only the images connected to the color selector are of the exact model listed, other images are generic and for illustrative purposes only and may be for a different spec model.
From 11th October 2020, all new quad bikes are required to meet the specified requirements of the US standard for quad bikes, ANSI/SVIA 1-2017, or the European standard for quad bikes, EN 15997:2011. From 11th October 2021, general use quad bikes are required to meet the minimum stability requirements and must also be fitted with an operator protection device (OPD) or have one integrated into its design. From 11th October 2021 all Segway Snarler Quads sold in Australia will have a compliant QuadBar Operator Protection Device (OPD) fitted by the dealer at point of sale included in RRP.
A requirement of the Consumer Goods Quad Bike Safety Standard is that all quad bikes are tested for static stability using a tilt table test and display the angle at which it tips on to two wheels on a hang tag at the point of sale. Crashlab (NSW) conducted the tilt angle test for all Segway SNARLER quad bikes for both lateral stability (sideways) and longitudinal stability (forward and back) tilt angles. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The test is conducted with the vehicle in a stationary position and weighted as if a rider was on board. All testing was conducted with a Quadbar OPD installed.
For more information on Australian Government Regulations & Safety Standards click below
