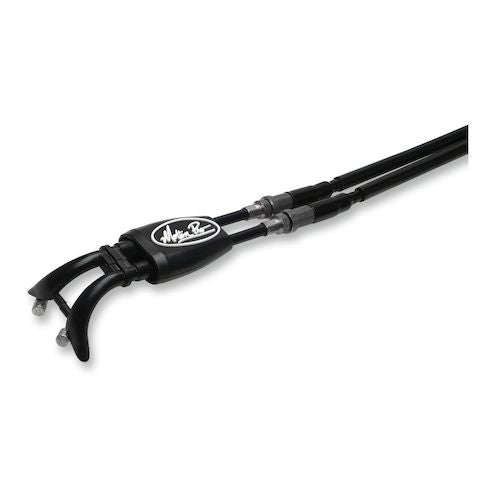

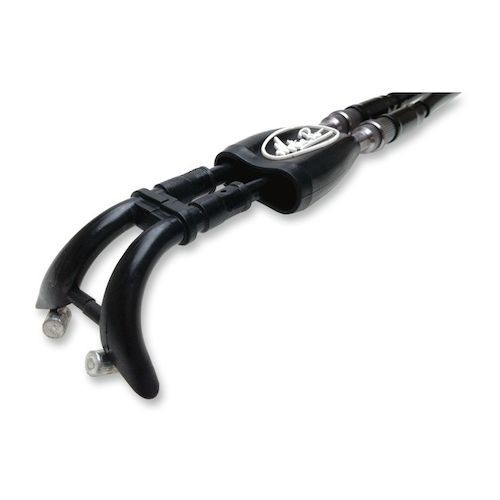

Motion Pro - Rev2 Throttle Kit - Ducati 848/1098/1198 08-13 - Superseded to 08-012939

THE MOST ADVANCED VARIABLE RATE THROTTLE IN THE WORLD

The Rev2 throttle has several different size reels that will change how much twist is necessary for the throttle to completely open the carbs or throttle bodies on a motorcycle. The larger the reel is, the shorter the twist. Each reel size will shorten the twist by about 10 degrees. If your stock throttle has a 40mm reel and stock twist is 90 degrees (1/4 turn), the 45mm reel will reduce the twist to 80 degrees and the 50mm reel will reduce it to 70 degrees. The 35mm reel will increase the throttle twist to approximately 100 degrees. This is just an example; every model of motorcycle is different.

The included cam reel has a progressive profile that allows the throttle to act like a sensitive, long twist throttle during the initial small throttle openings for precise control and then acts like a more aggressive short twist throttle at large throttle openings, progressively shortening the amount of twist needed to reach full throttle.

FEATURES

The second generation of our innovative reel changing system lets you tailor the throttle rate to riding conditions and rider preference
New ultra compact housing with snap-together elbows make it easy to install and change reels
Sleek new design requires less handlebar space for lever clearance and throttle position
Use smaller reels for slower throttle rate and larger reels for faster throttle rate
Included cam reel provides progressive throttle response preferred by some riders
Unique reel design allows fast reel changes
Cable boot keeps dirt and dust out for reliable and smooth operation

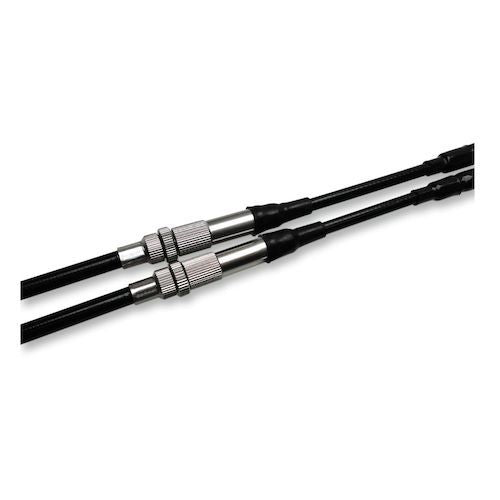

Billet aluminum in-line cable adjusters for easy installation and adjustment
Lower section of cables use 5 mm housing with PTFE liner for reduced friction, increased routing flexibility and lighter weight
Upper section of cables use 6 mm housing to provide solid support of adjusters
Simple to install and maintain
Designed by Motion Pro
Patent pending

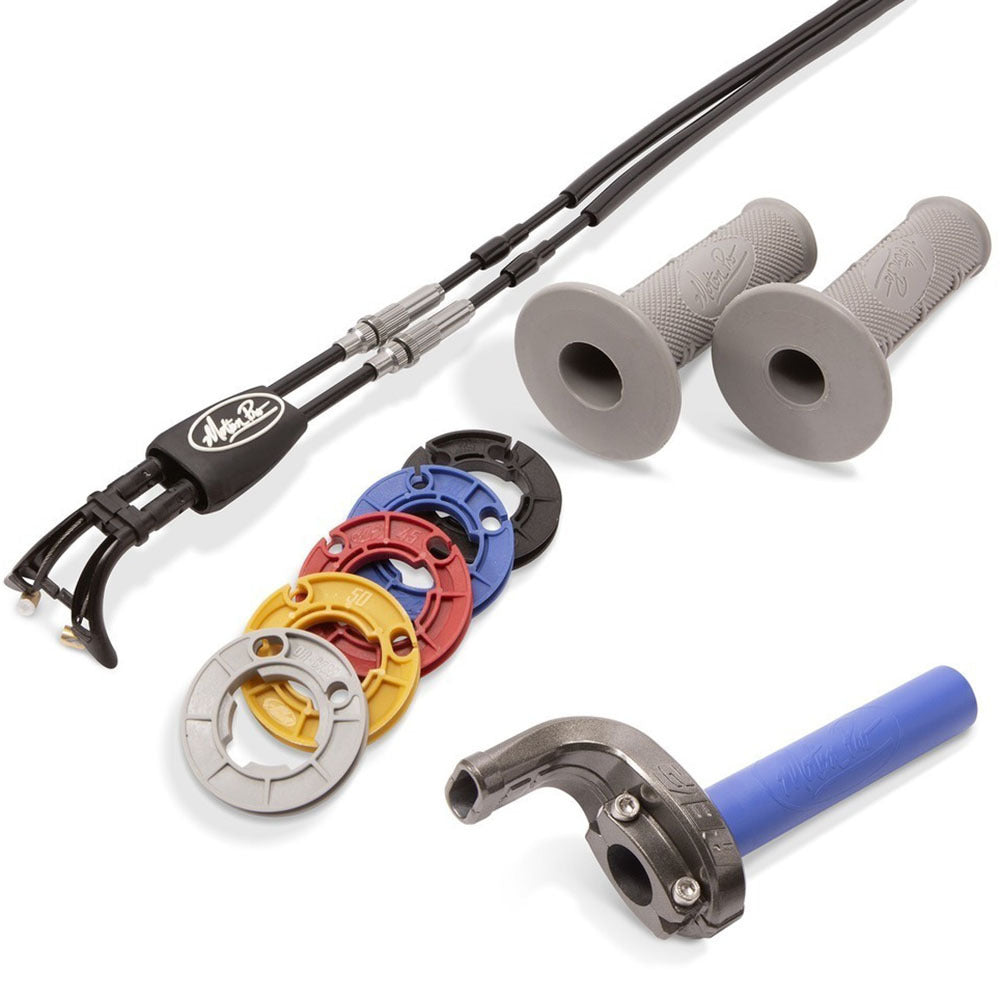

KITS INCLUDE

Complete Rev2 Throttle Assembly with throttle tube (MX/Off-road kits Include Titan Throttle Tube)
High quality Motion Pro black vinyl cables (specifically designed for your bike)
5 interchangeable reels: 35, 40, 45, 50mm and cam reel (Street/Road: orange or MX/Off-Road: grey)
Set of Motion Pro Grips (Street/Road Race kit: RoadControl grips, MX/Off-road kit: DirtControl grips)
Rev2 Throttle Equipped decal set
Printed color instructions

Note: Image for reference only product may vary slightly for fitment
