2024 Yamaha RMAX4 1000 XT-R
Ready to Ride
2024 Yamaha RMAX4 1000 XT-R - Desert Tan Tactical Black is backordered and will ship as soon as it is back in stock.
Engine
Engine
- Engine Type: Liquid-cooled, 4-stroke, DOHC, parallel twin
- Displacement (cc): 999.0
- Bore x Stroke (mm): 93.0 x 73.5
- Compression Ratio: 11.2 : 1
- Lubrication System: Dry sump
- Fuel Management: Fuel Injection
- Ignition: TCI
- Starter System: Electric
- Fuel Tank Capacity (L): 34.8
- Final Transmission: On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
- Transmission: Ultramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock
Chasis
Chasis
- Frame Type: Steel tube
- Suspension Front: Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 360mm travel
- Suspension Rear: Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 338mm travel
- Brakes Front: Hydraulic dual discs
- Brakes Rear: Hydraulic dual discs

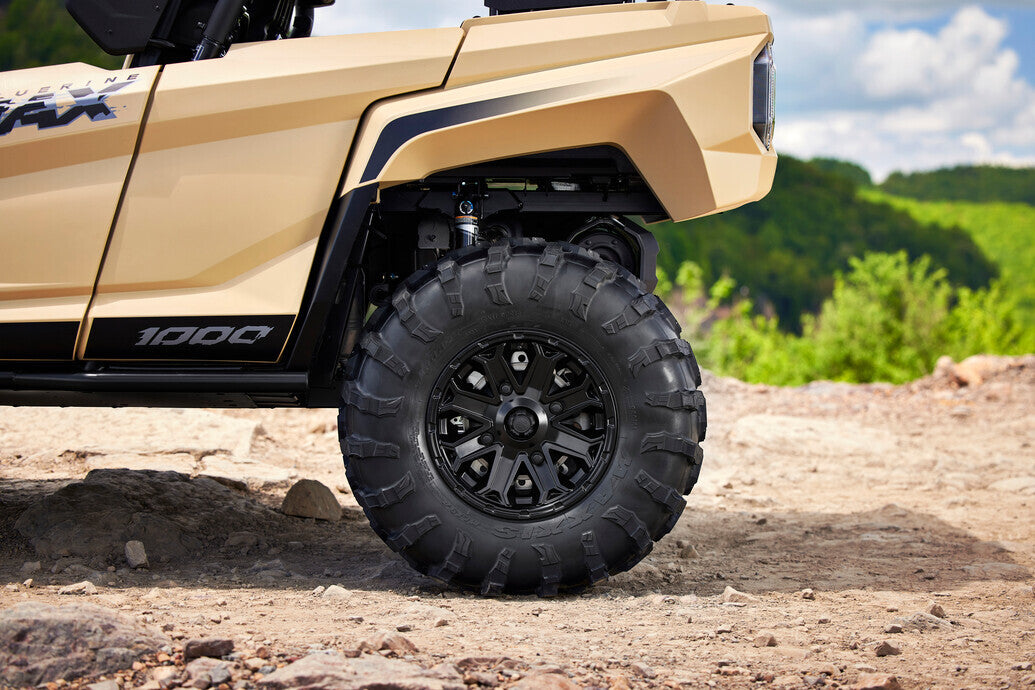

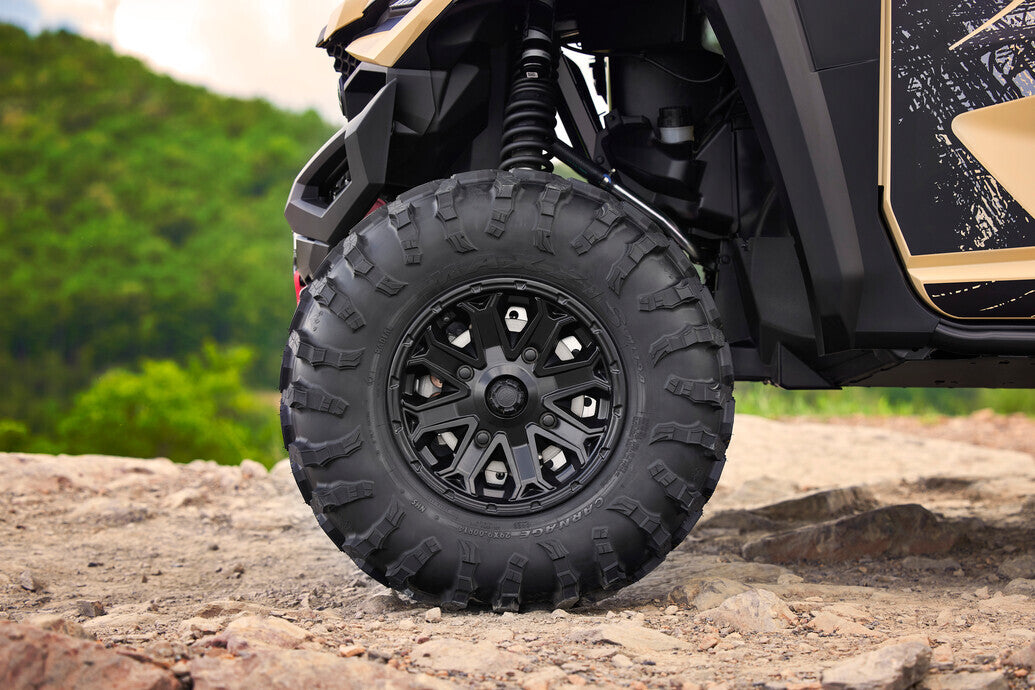

- Tyres Front: 29 x 9.00R-14 Maxxis Carnage
- Tyres Rear: 29 x 11.00R-14 Maxxis Carnage
Dimensions
Dimensions
- Length (mm): 3255
- Width (mm): 1676
- Height (mm): 2110
- Wheelbase (mm): 2291
- Ground Clearance (mm): 340
- Wet Weight (kg): 930

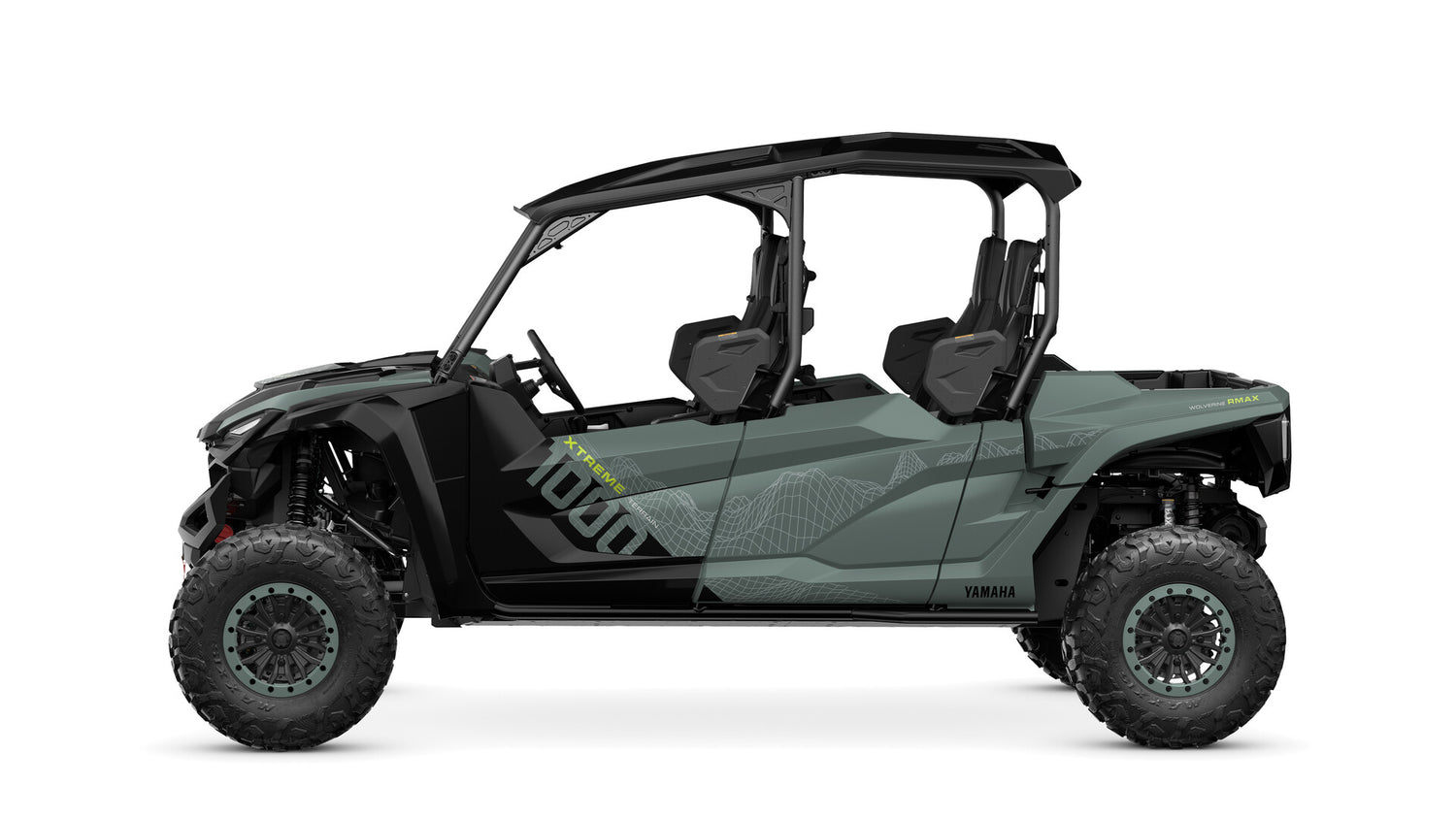

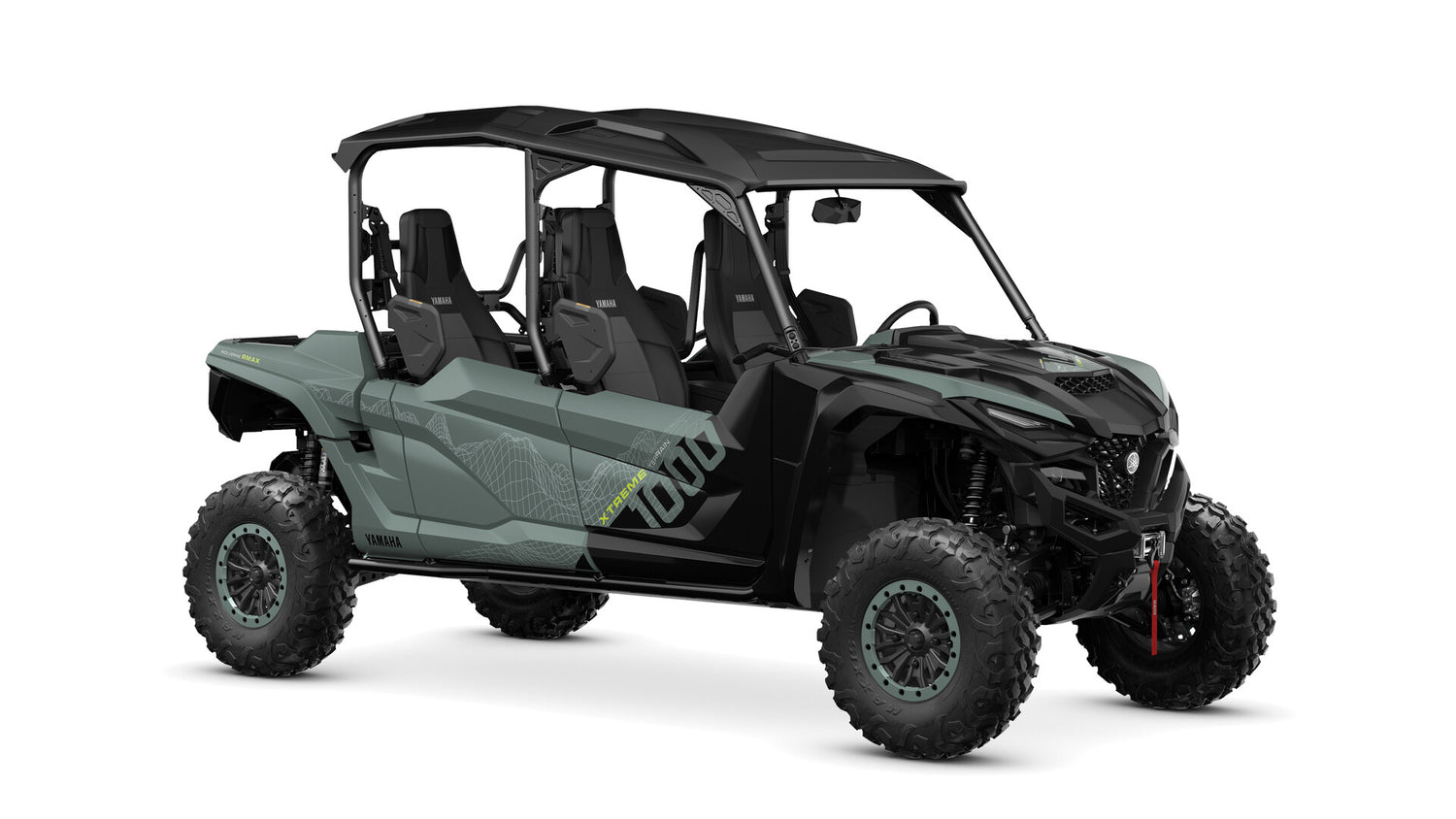

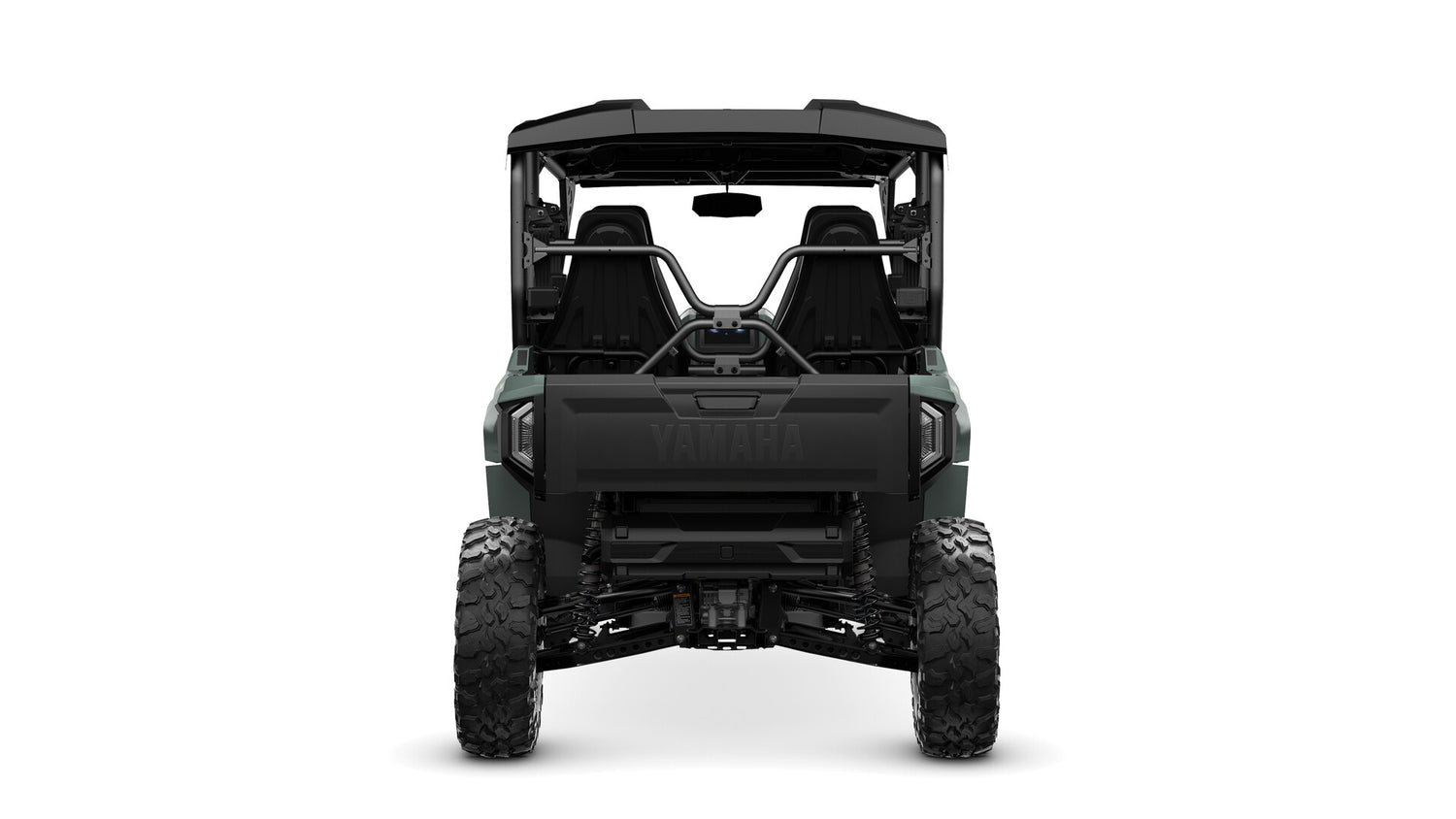

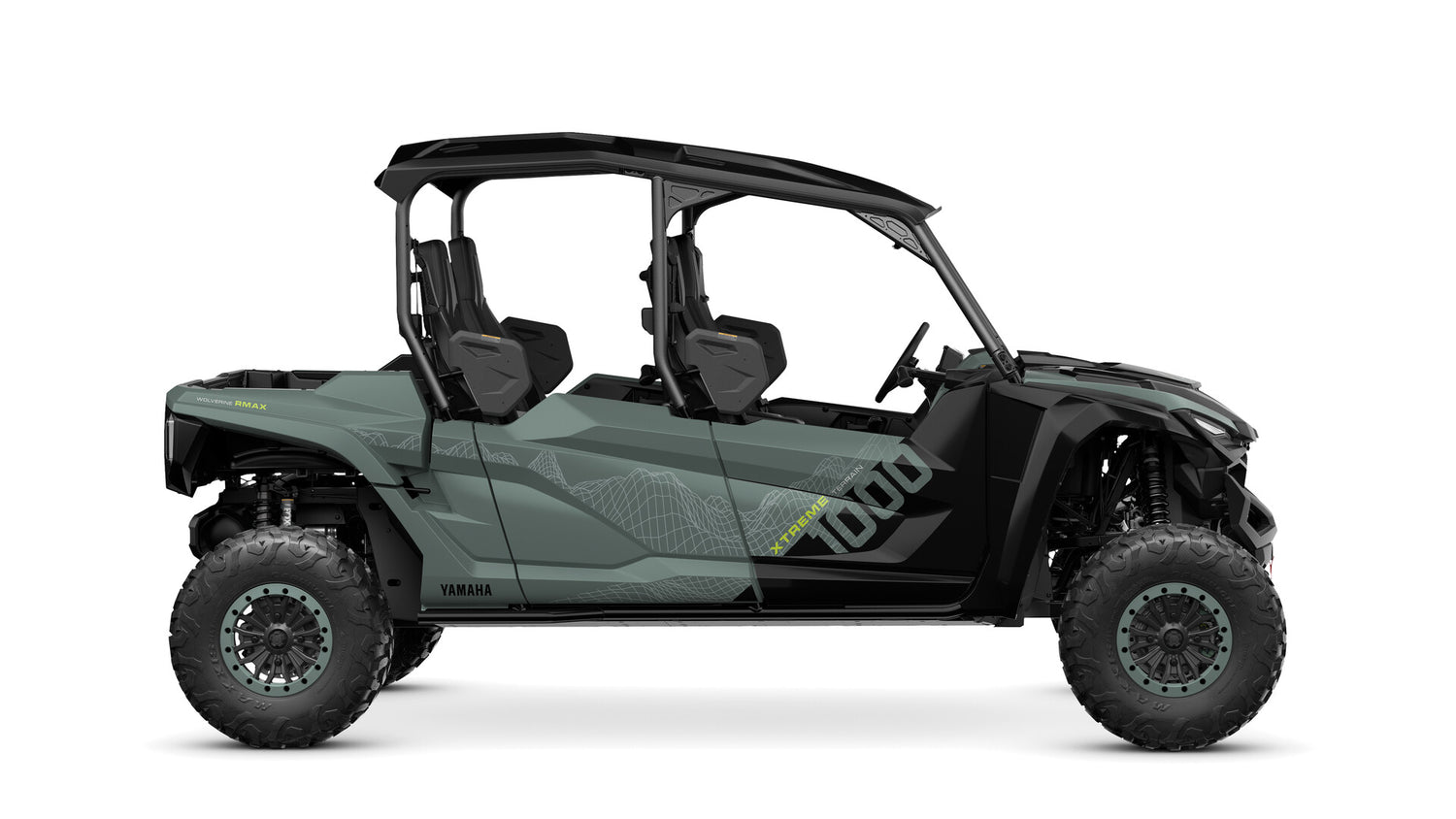

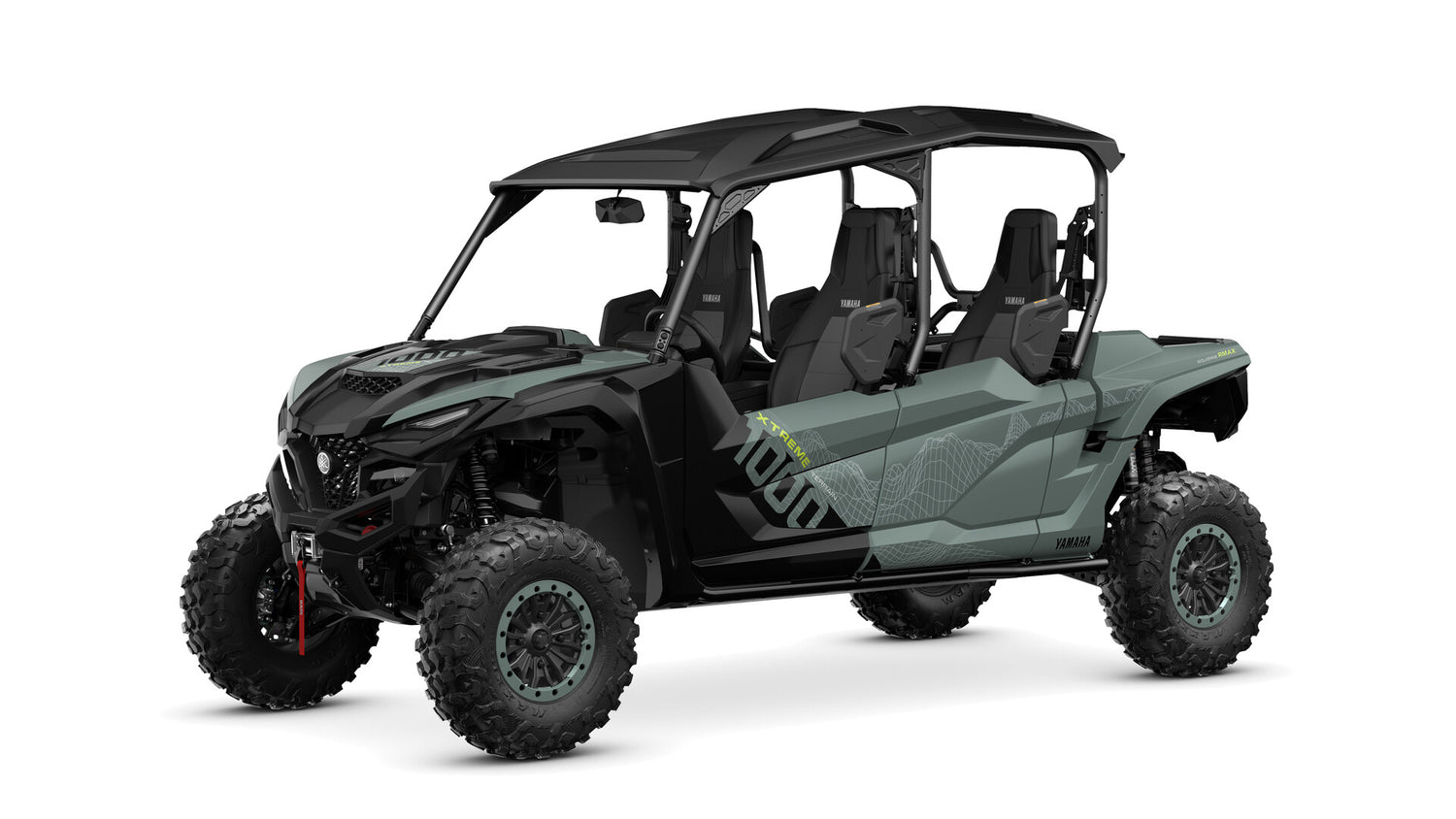

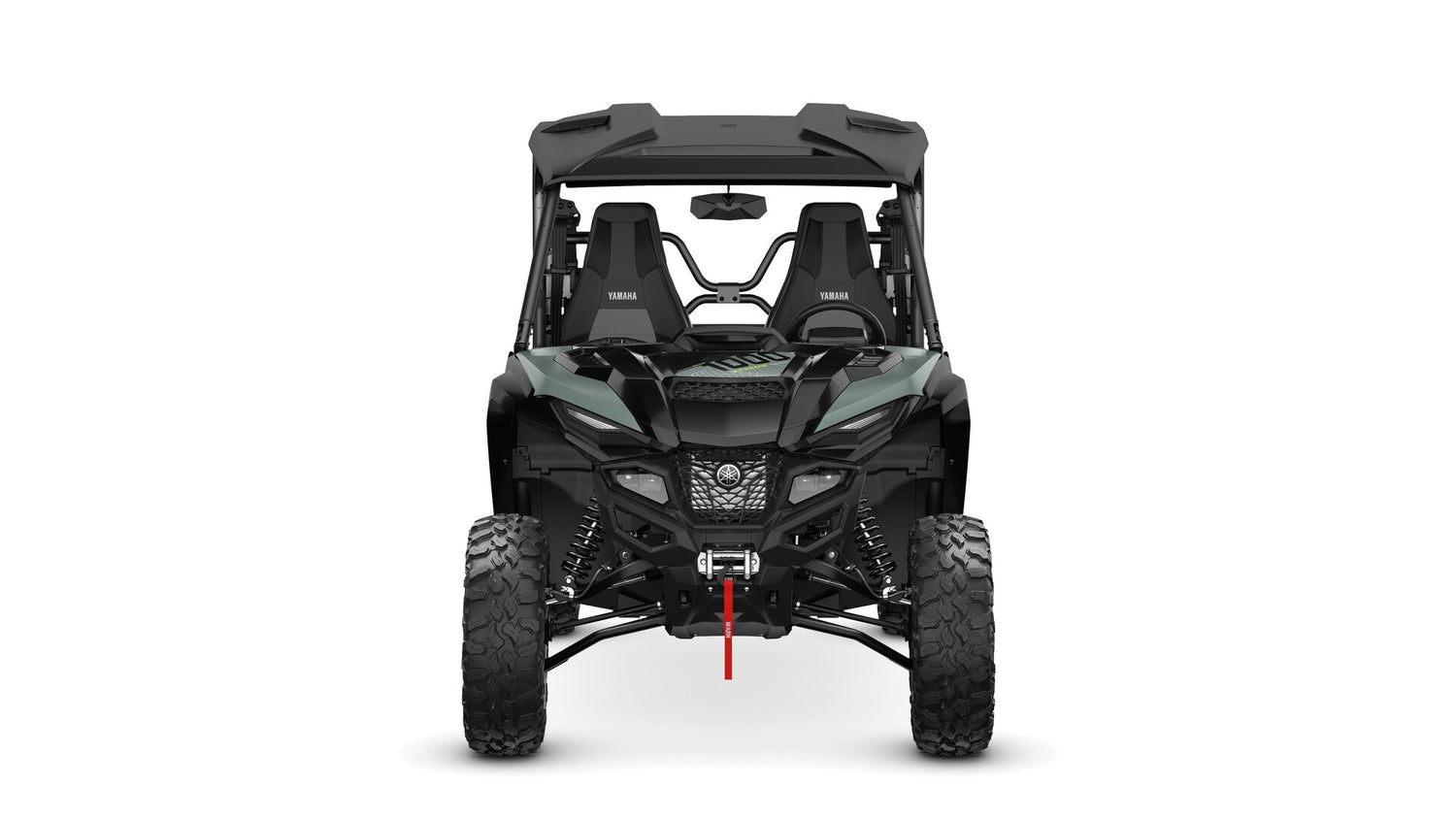

2024 Yamaha RMAX4 1000 XT-R
4 SEATER FOR THE WHOLE FAMILY
Fun for the whole family while still being an unbelievably capable work rig!
This incredible new four-seat powerhouse is designed to venture into terrain you never thought possible – with automotive-style comfort and confidence-boosting control.

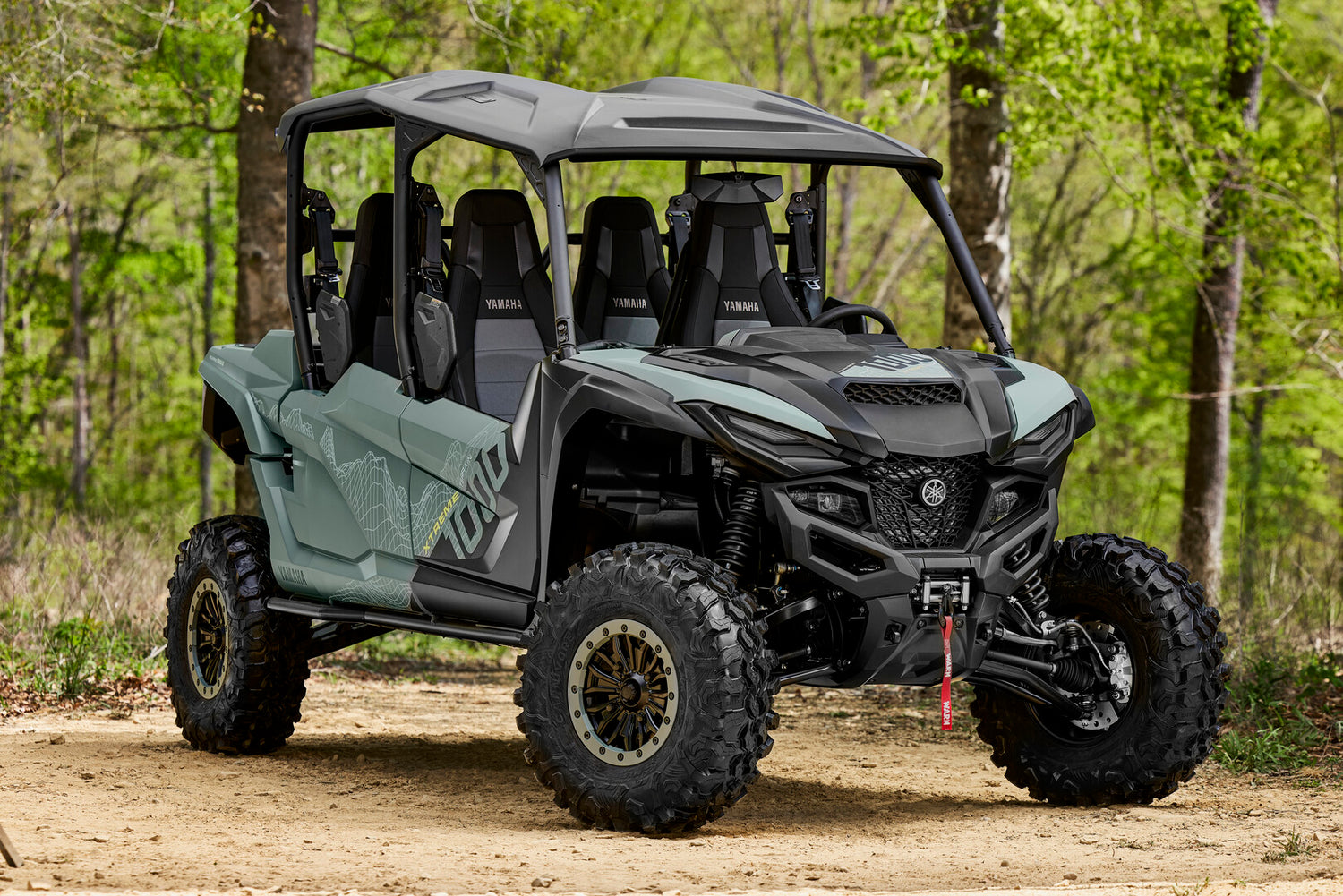

Smooth power is produced by the class-leading new 999cc twin engine and push-button D-mode control with three drive positions – Sport, Trail and Crawl. The plush ride comes courtesy of long travel, high-performance Fox 2.0 QS3 shocks. Automotive-style luxuries will be familiar to car drivers while XT-R paint, a factory-fitted Warn winch, colour-matched wheels and aggressive Maxxis tyres combine to offer a unique, sophisticated ride.

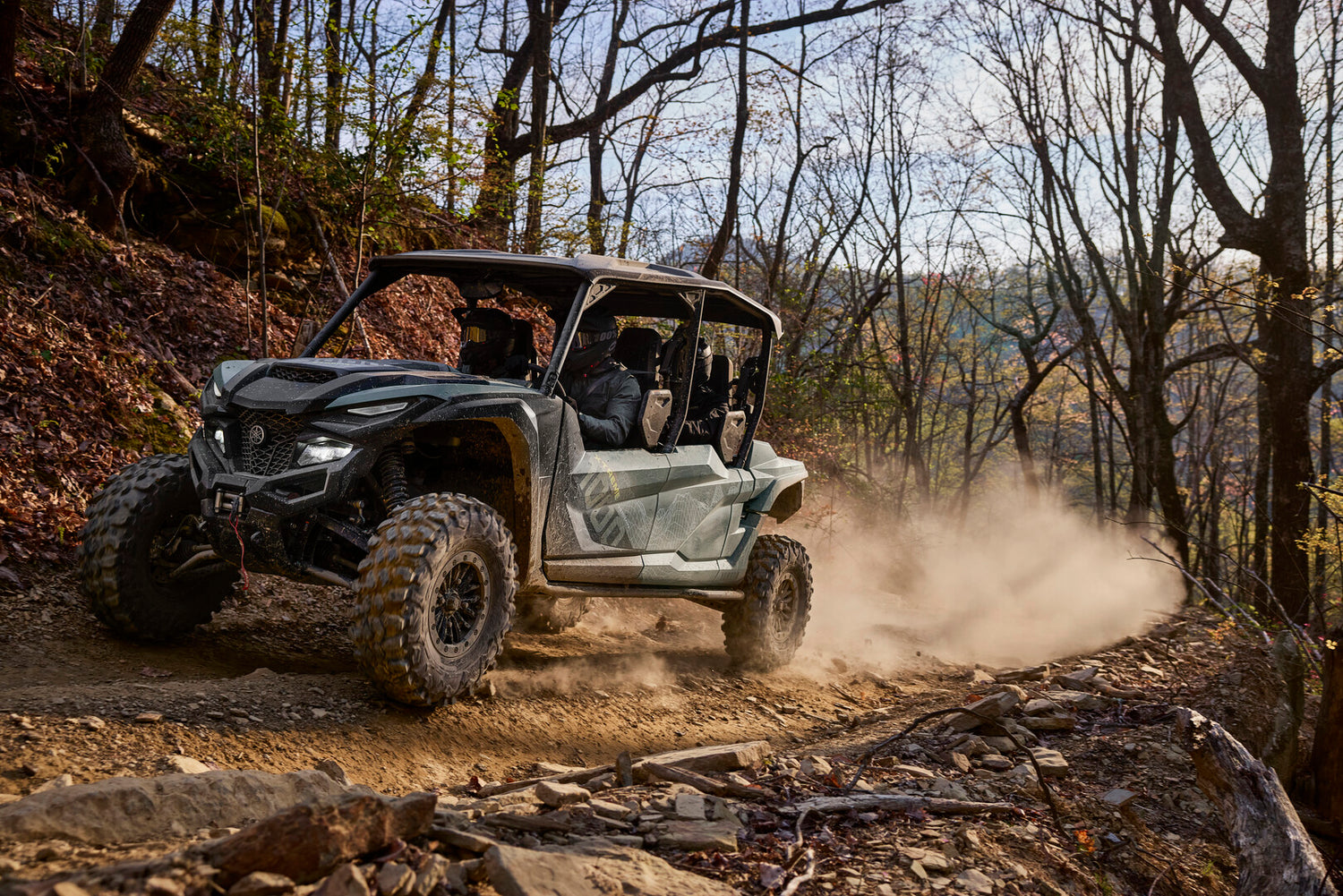

RMAX 4 conquers the toughest terrain in comfort.
OFFERS & PROMOTIONS
Yamaha is pleased to announce a promotional offer on selected side by side vehicles.
MODEL FEATURES
See unique features by clicking the buttons on the image below
