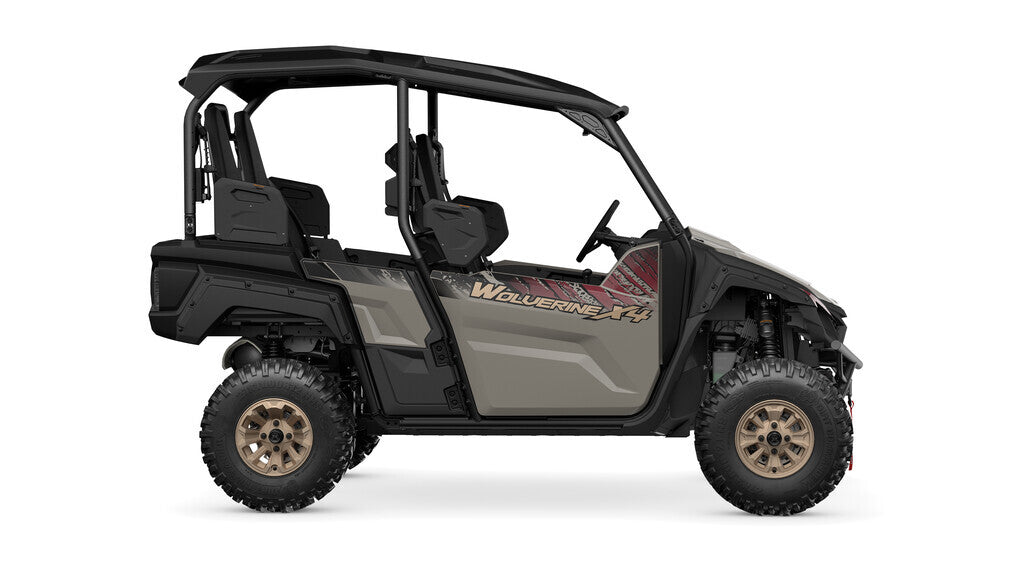

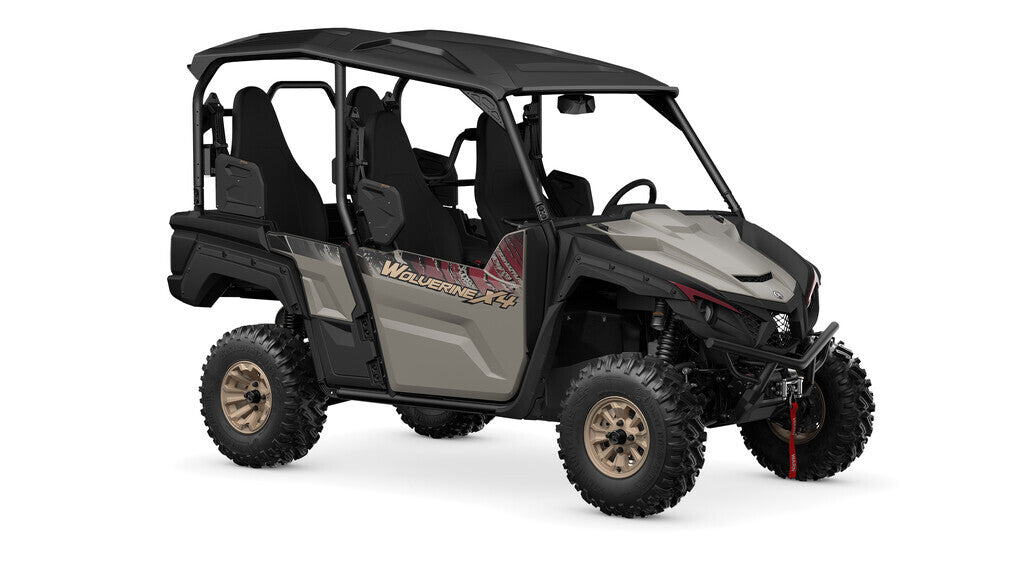

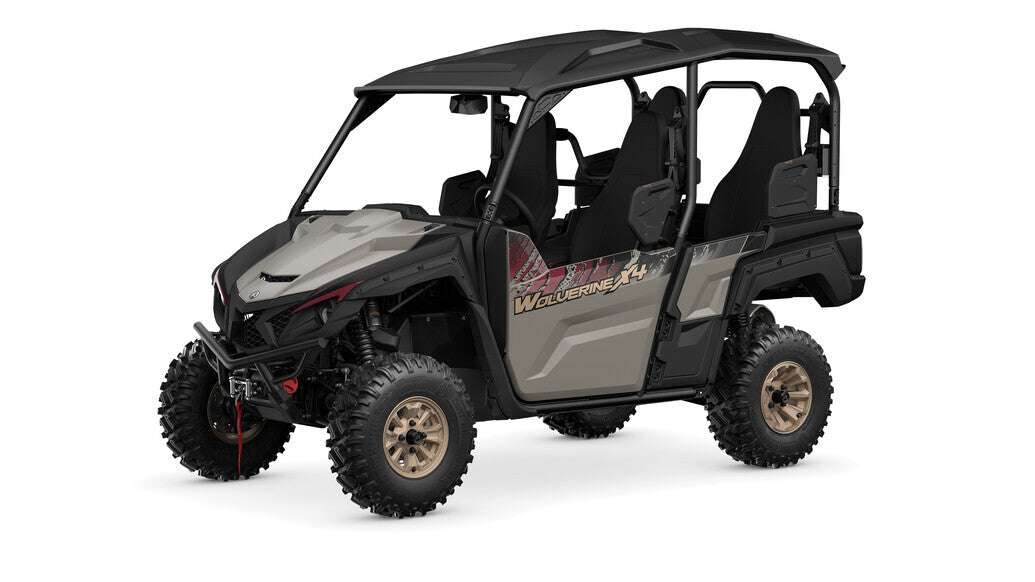

2024 Yamaha Wolverine X4 XT-R
Ready to Ride
2024 Yamaha Wolverine X4 XT-R - Titan and Tactical Black is backordered and will ship as soon as it is back in stock.
Engine
Engine
- Engine Type: Liquid-cooled, 4-stroke, DOHC, parallel twin
- Displacement (cc): 847.0
- Bore x Stroke (mm): 82.0 x 80.2
- Compression Ratio: 10.5 : 1
- Lubrication System: Dry sump
- Fuel Management: Fuel Injection
- Ignition: TCI
- Starter System: Electric
- Fuel Tank Capacity (L): 35.0
- Final Transmission: Shaft
- Transmission: Ultramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock
Chasis
Chasis
- Frame Type: Steel tube
- Suspension Front: Independent double wishbone, 221mm wheel travel

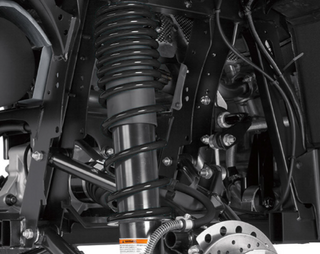

- Suspension Rear: Independent double wishbone, 236mm wheel travel with self-leveling shock absorbers
- Brakes Front: Hydraulic dual discs
- Brakes Rear: Hydraulic dual discs
- Tyres Front: 27 x 9-12
- Tyres Rear: 27 x 11-12
Dimensions
Dimensions
- Length (mm): 3100
- Width (mm): 1580
- Height (mm): 1973
- Wheelbase (mm): 2125
- Ground Clearance (mm): 286
- Wet Weight (kg): 823
Real World Tough Reliability

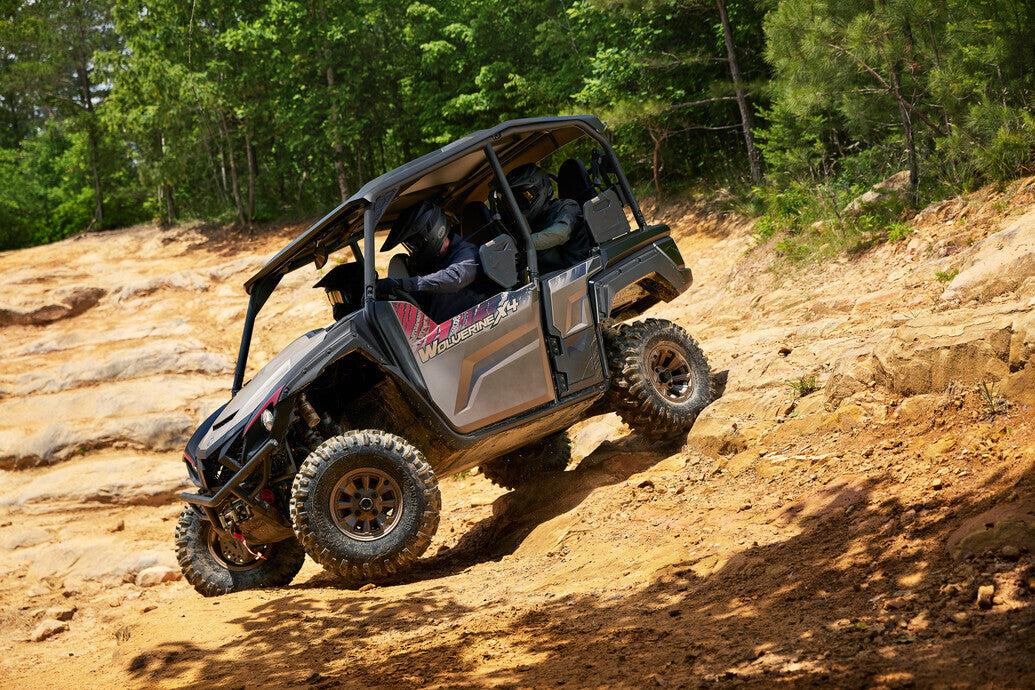

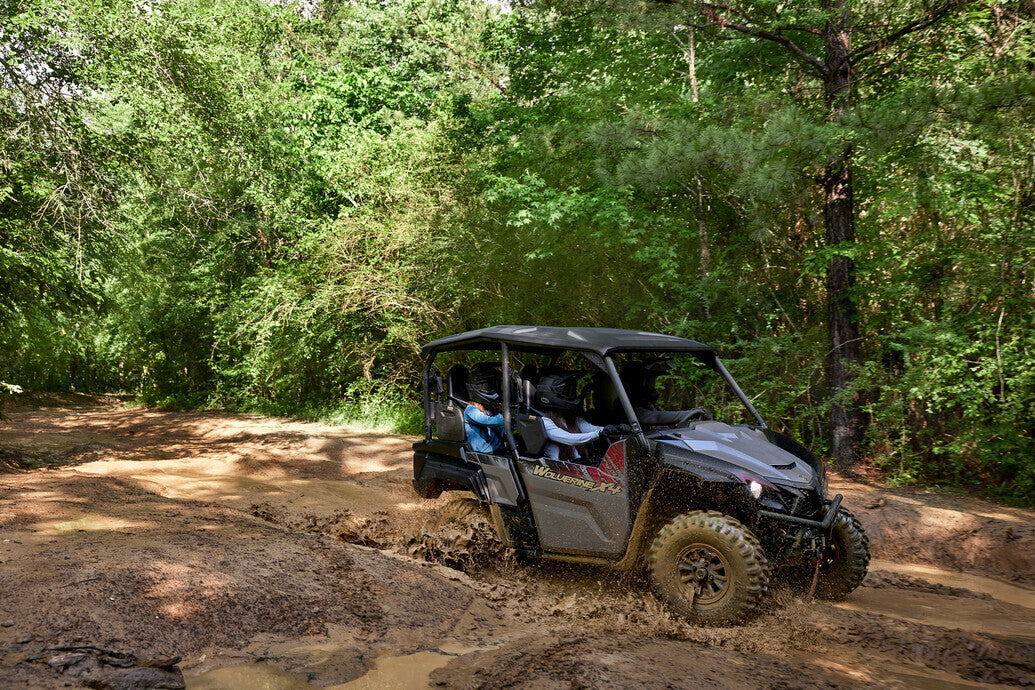

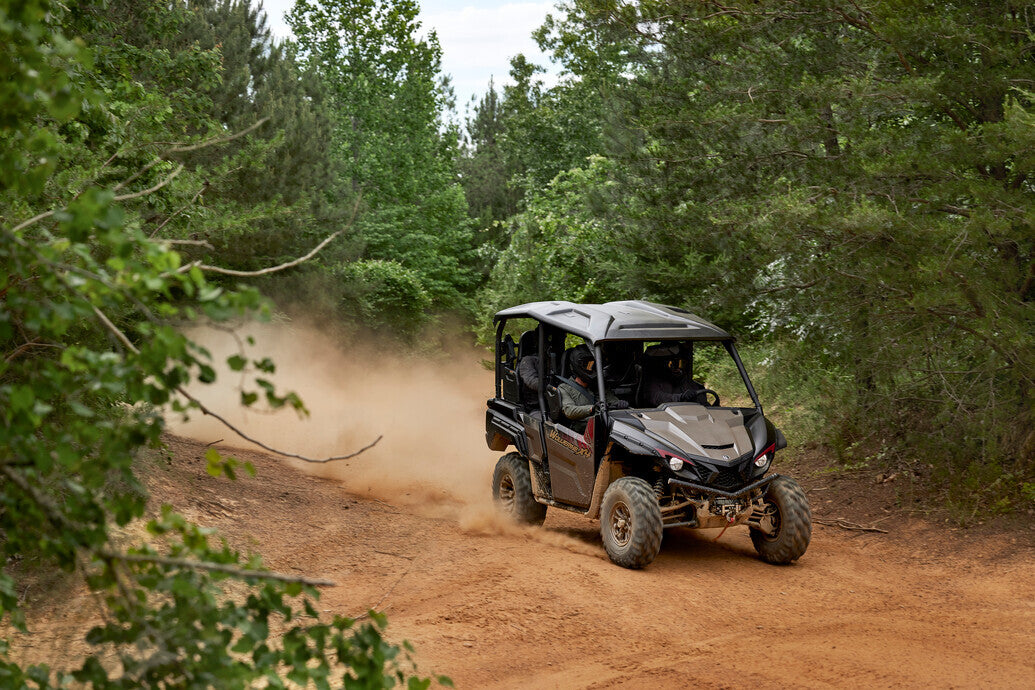

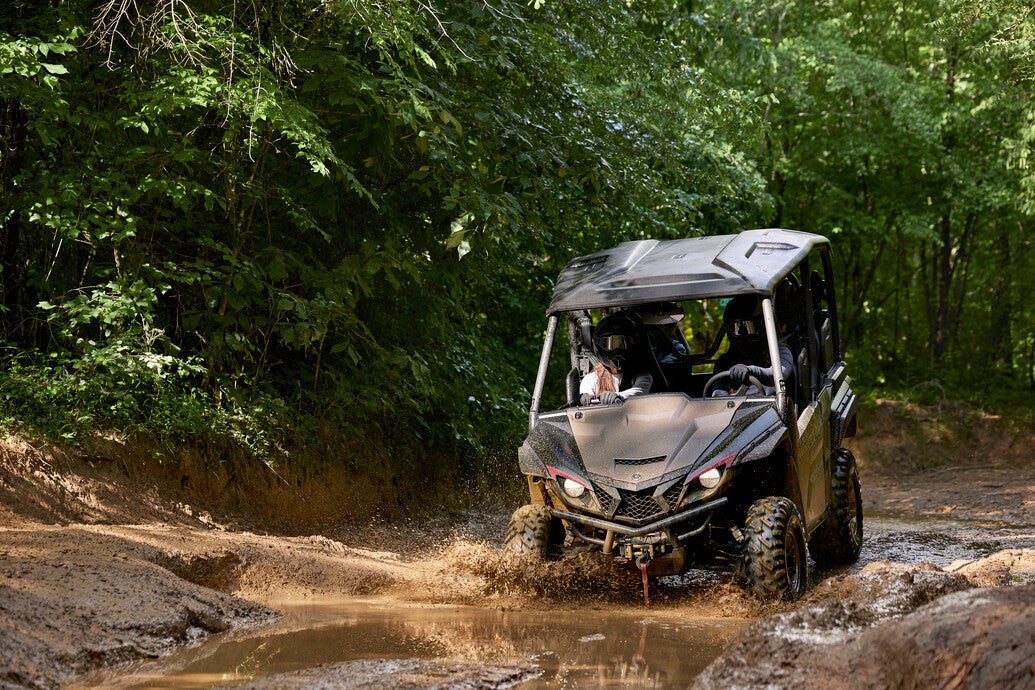

Wolverine X4 XT-R delivers superior handling, especially on tight, technical trails, combined with Yamaha’s legendary Real World Tough durability and reliability.
Wolverine X4 XT-R delivers superior handling, especially on tight, technical trails, combined with Yamaha’s legendary Real World Tough durability and reliability.
Smooth, ultra-quiet power comes from an 847cc twin-cylinder engine, along with Yamaha’s Real World Tech including the proven Ultramatic CVT transmission, Yamaha’s On-Command System with 2WD, 4WD and 4WD with full differential lock, and Yamaha’s exclusive EPS.
Kitted out in top-shelf XT-R trim including durable 27-inch radial tyres, a WARN® VRX 4500 winch, and high-quality painted body and graphics package with colour-matched aluminium wheels, Wolverine X4 XT-R sits four in comfort ready to take on tough terrain.
