2024 Yamaha TMAX 560 Tech Max
Ride Away
2024 Yamaha TMAX 560 Tech Max - Dark Magma is backordered and will ship as soon as it is back in stock.
Engine
Engine
- Engine Type: Liquid-cooled, 4-stroke, DOHC, 4-valve
- Displacement (cc): 562.0
- Bore x Stroke (mm): 70.0 x 73.0
- Compression Ratio: 10.9 : 1
- Lubrication System: Dry Sump
- Fuel Management: Fuel Injection
- Ignition: TCI
- Starter System: Electric
- Fuel Tank Capacity (L): 15.0
- Final Transmission: Belt
- Transmission: V-Belt Automatic
Chasis
Chasis
- Frame Type: Aluminium CF die-cast
- Suspension Front: Telescopic forks, 120mm travel
- Suspension Rear: Swingarm, 117mm travel
- Brakes Front: Hydraulic dual discs, 267mm - ABS
- Brakes Rear: Hydraulic single disc, 282mm - ABS
- Tyres Front: 120/70R15M/C 56H Tubeless
- Tyres Rear: 160/60R15M/C 67H Tubeless
Dimensions
Dimensions
- Length (mm): 2195
- Width (mm): 780
- Height (mm): 1415 / 1525
- Seat Height (mm): 800
- Wheelbase (mm): 1575
- Ground Clearance (mm): 135
- Wet Weight (kg): 220

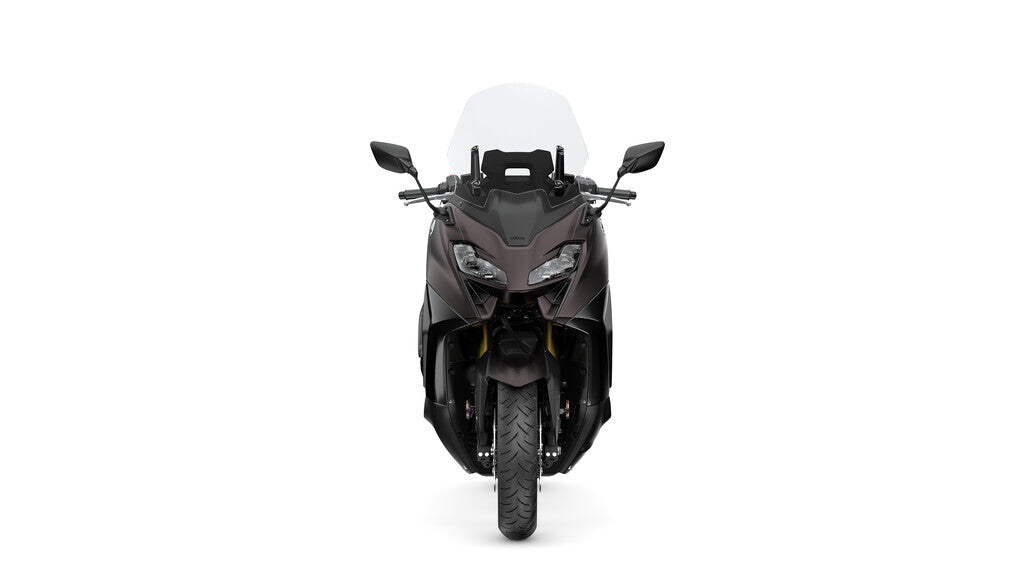

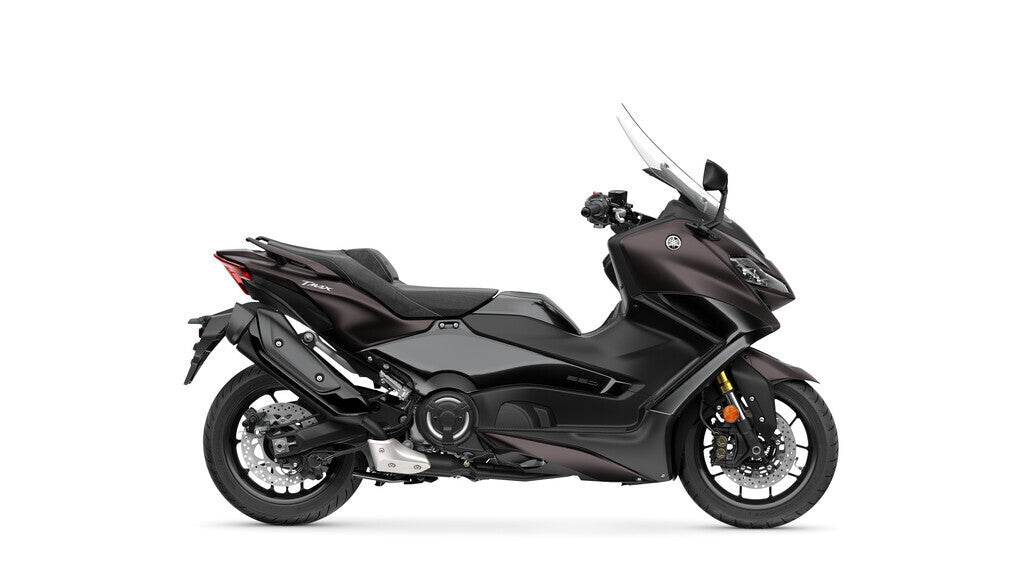

2024 Yamaha TMAX 560 Tech Max
TMAX now has all the Tech!
The TMAX Tech Max has been radically uprated with a best-in-class 7-inch colour TFT screen with full smartphone connectivity.
The TMAX Tech Max has been radically uprated with a best-in-class 7-inch colour TFT screen with full smartphone connectivity – enabling you to keep in touch on every ride. Full-map Garmin Navigation* makes sure you get there on time – and with a heated seat, heated grips, electric screen and cruise control, you can enjoy business class comfort through the year.
The TMAX Tech MAX also comes with a compact body with a longer seat and footboards that give an even more comfortable ride. Its aggressive face and aerodynamic front wings project a super sport-inspired look, taking the TMAX Tech MAX one step closer to the motorcycle world. And premium components and a class-leading finish confirm what you probably already knew about this iconic machine.
(* Full-map Garmin Navigation requires a subscription service agreement and is not offered in all countries. Some navigation features are not available in all countries, please check with Garmin for availability.)
MODEL FEATURES
See unique features by clicking the buttons on the image below
