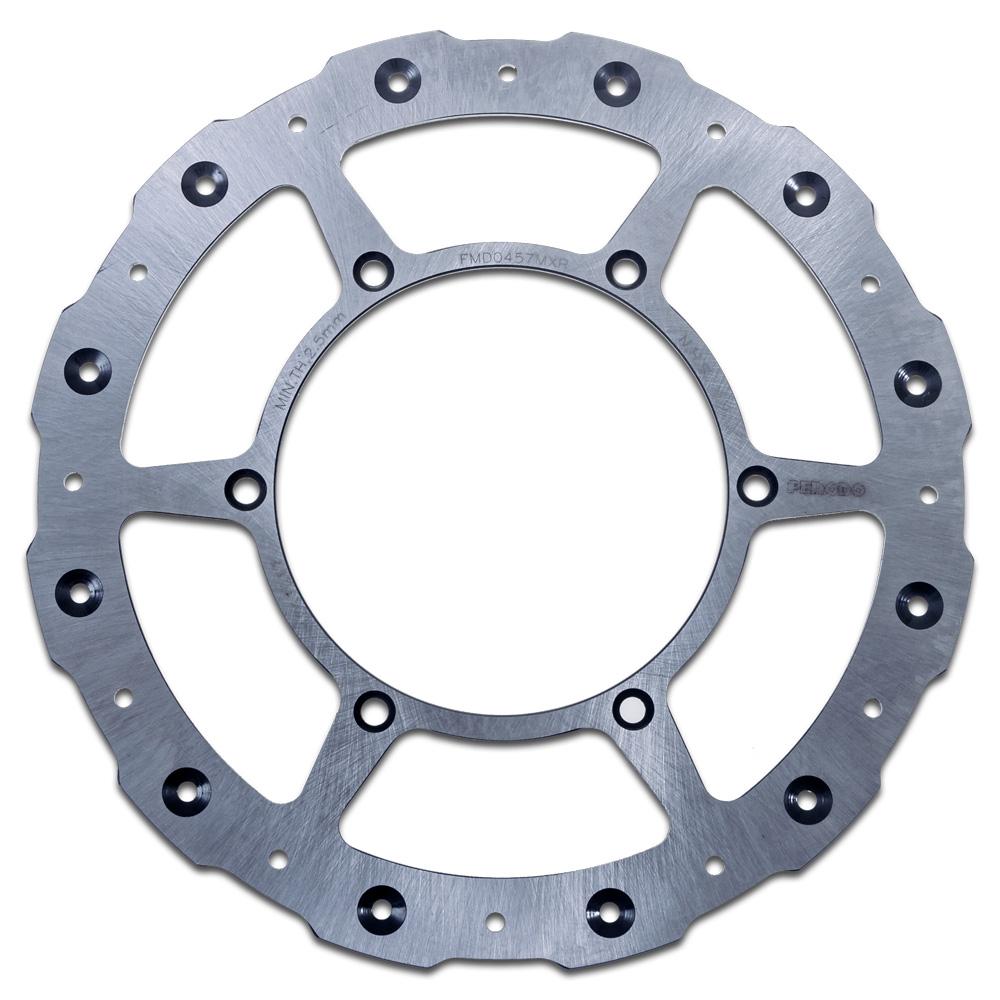

FERODO Disc Brake Rotor 270mm - FMD0462MXR

FMD0462 - Front for YAMAHA models.

Features :
• Full Circle Outer Profile - OE look and will resist warping at high temperatures.
• Self Cleaning Design - Unique cut-out pattern to assist with the removal of dirt and brake dust build-up on the disc rotor.
• Highest Quality - Machined from a high carbon grade of stainless steel and fully heat-treated for improved disc and pad wear life benefits.

Manufactured to ISO 9001 Standards to ensure a high quality product for road and off-road applications.
Suitable for FERODO Sintered SG for wet muddy condition and Non Sintered P or EF formulations in dry and dusty conitions for excellent brakng performance.

DIMENSIONS OF FMD00462:

Details Values
OD - Outer Diameter: 270.0 mm
ID - Inner Diameter: 118.0 mm
PCD - Mounting Diameter: 134.0 mm
Thickness: 3.0 mm
Number of Mounting Holes: 6
Mounting Hole diameter: 6.5mm
Fixing Type: Countersunk Mount

Notes:
1. New brake disc rotors and brake pads (either front or rear) should be fitted by a qualified technician.
2. The Brake System comprising of master cylinder and caliper should be cleaned and serviced with new Hi Temp Racing Brake Fluid.
3. It is essential to follow the correct 'bed-in' procedure to achieve the best braking performance.
4. Caution - the new FERODO disc rotor should be thoroughly cleaned to remove the protective coating prior to fitment.
